H&S 412

Double tap to zoom

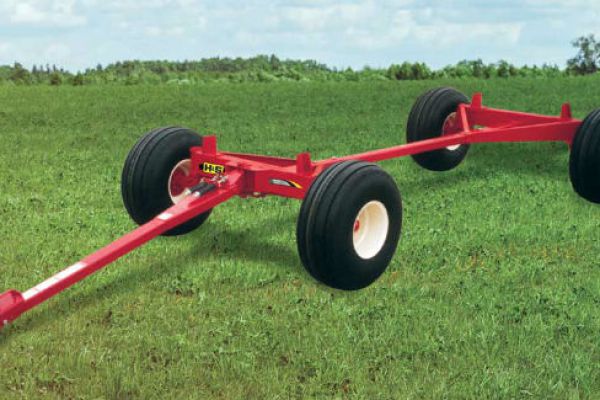

Single Axle Running Gear 412
Get a Quote »
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send to a friend »
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
- H&S models 410, 412, 415, 612, 614, and 617 have L-shaped front spindles with structural bracing to withstand high stresses from shock loads.
- The H&S heavy running gears – models 415 through 622 – utilize thrust bearings to assure dependable, smooth turning and straight trailing.
- The tele-pole is made of structural tubing and the mounting plates have wide spacing between them to reduce sway and increase the strength of the pole.
- The C-Section reach provides both strength and flexibility without rotating collars.
- King Pin, Hitch Pin, Spindles, Tie Rod Ends and Tie Rod Steering Pivot Point are all wear protected by replaceable oil impregnated steel bushings and are greaseable as well.
- Full Contact Turn Stops distributes the pressure exerted in tight dragging turns along the bolster face – this reduces the possibility of bunk damage or collapse.
- Running gears from 12 ton on up have 4-bolt brake flanges as standard equipment so that optional hydraulic surge brakes may be installed.
- The tie rod is positioned behind the bolster on all models and is a one-piece design that reduces the number of wear point that could change the toe-in and tracking.
- The spring assist is standard on all models and is adjustable from a light assist to full support.
- Front and rear stake pockets wear pockets are standard on ALL MODELS!
Specifications
412 | |
CAPACITY | 12 TON |
WEIGHT W/TIRES | 1190# w/12.5L |
TREAD WIDTH | 80″ |
SPINDLES | 2.25″ |
HUBS | 8 BOLT |
BOLSTER | 3″ x 8″ |
C-REACH | 7 GAUGE |
WHEEL BASE | 119″ TO 159″ IN 10″ INCREMENTS |
STANDARD WHEEL | 15 x 10 |
WHEEL OPTIONS | 16.1 x 11 22.5 x 8 22.5 x 13.5 |
BRAKES | OPT. HYD. SURGE |
BACK HITCH | YES |
TELESCOPING POLE | 77″ FIXED, EXTENDS TO 89″ |
