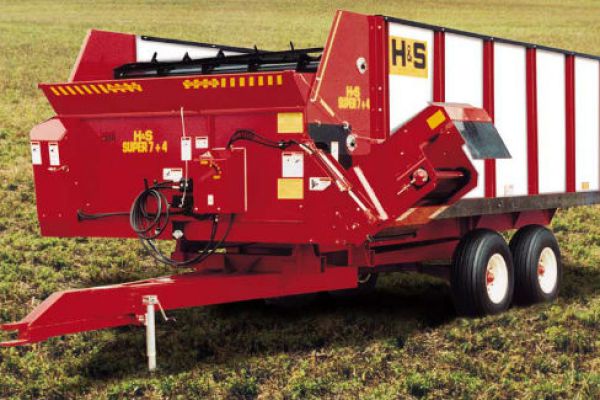

H&S 7-4 Feeder Box

New Equipment / All Brands / H&S / Feeder Wagons / 7+4 Feeder Box / 7-4 Feeder Box

Double tap to zoom

The H&S Feeder Box is available in a 16′ Front Unload model
Feeder Box can be mounted on a 12 ton tandem chassis with 12.5L x 15 tires, truck mounted, or running gear mounted.
A very simple, easy to operate electric-over-hydraulic control box mounts on the tractor or in the truck cab.
Available with an optional scale system for truck or chassis mount.

7+4 FEEDER BOX
POWER	HYDRAULIC DRIVE
HYDRAULIC REQUIREMENTS	(2000 PSI, 10 GPM.)
FEEDER APRON DRIVE	WORM GEAR (BRONZE)
SPEEDS	INFINITE VARIABLE
MAIN APRONS	4 CHAINS – 667H PINTLE
BEATERS	2-18″ DIAMETER, 4 SPIRAL BAR
BEATER DRIVE	#50 ROLLER CHAIN
CROSS CONVEYOR	#550 ROLLER CHAIN OR ANGLE CROSS SLATS
CROSS CONVEYOR DRIVE	SPROCKET AND #50 ROLLER CHAIN
CROSS CONVEYOR WIDTH	22″
DISCHARGE	LEFT SIDE UNLOADING ELEVATOR
DISCHARGE OPENING	LEFT SIDE UNLOADING ELEVATOR
DISCHARGE HEIGHT	MINIMUM (45 degree angle) 33" MAXIMUM (0 degree angle) 39"
INSIDE LENGTH	16′
INSIDE WIDTH	7′ 4″
INSIDE HEIGHT	48″
CAPACITY	BY VOLUME, STRUCK LEVEL 454 CU. FT. BY WEIGHT 20,000 LBS.
OVERALL LENGTH	23′ 7″
OVERALL WIDTH	CONVEYOR UP 9' 8" CONVEYOR DOWN 12" 4"
OVERALL HEIGHT (LOADING HEIGHT)	8′ 2″
WEIGHT	5570 LBS.
SIDES	½″ FIBERGLASS REINFORCED PLYWOOD (FRP)
FLOORS	½″ POLY BONDED PLYWOOD
TIRES	12.5L X 15, TANDEM
RUB RAIL – WOOD	STD
EMERGENCY STOP MECHANISM	STD
HIGHWAY LIGHT PKG.	STD
ELECT. CONTROLS	STD
TRUCK MOUNTED VERSION	OPTIONAL
HEIGHT FROM BOTTOM OF FRAME TO TOP OF BOX	69″
RECOMMENDED TRUCK CAB TO CENTER OF AXLE MINIMUM	150″
