H&S Model 5242
New Equipment /
All Brands /
H&S /
Manure Spreaders /
Top Shot Side Discharge Manure Spreaders /
Model 5242

Double tap to zoom

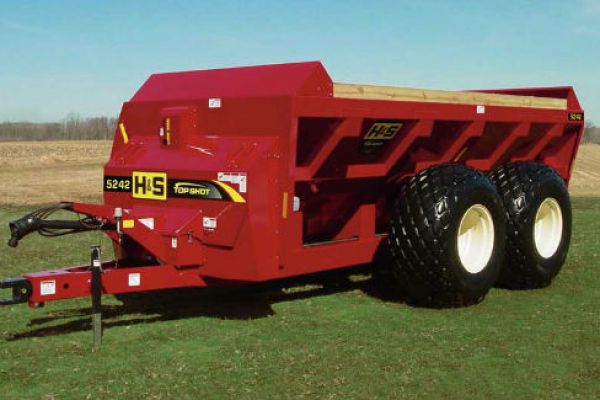

Top Shot Side Discharge Manure Spreaders Model 5242
Get a Quote »
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send to a friend »
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
The heavy-duty expeller system with a quick release poly-lined fine spread pan, and side fins help cut the drift of material towards the tractor and spreader, and provide an excellent spread pattern.
- 40″ Wide “Top Shot” Expeller Beater
- 30″ Diameter Round Core Segmented Auger
- Heavy Duty Gearbox Reduction
- Overrunning Clutch /Torque Limiting Clutch
- Left Side Poly Lined Tank
- Front and Rear Splash Guards
- Flip-Over Adjustable Hitch
- Shear Bolt Protection
- The auger System hydraulically raise and lower a full 8″ to break-up material that may bridge during the unloading process.
- Automatic Chain Oiler System
- Highway Lighting System
- Remote Grease System
- Hydraulic Lid (Optional)
Specifications
MODEL | 5242 |
CUBIC FT. STRUCK LEVEL | 564 |
GALLON CAPACITY | 4200 |
TANK LENGTH | 20′ |
OVERALL LENGTH | 27′ 7″ |
TANK WIDTH - TOP | 97″ |
AUGER DIAMETER | 30″ |
POLY LINED TANK | Left Side |
OVERRUNNING CLUTCH | Yes |
SHEAR BOLT PROTECTION | Yes |
PTO | 1000 RPM 1 ¾″ Std. or 1000 RPM 1 ⅜″ Opt. |
EXPELLER WIDTH | 40″ |
FRONT SPLASH-GUARDS | Standard |
REAR SPLASH-GUARDS | Standard |
AUTOMATIC OILER | Standard |
HIGHWAY LIGHTING | Standard |
WEIGHT | 16,500# |
TIRES | w/28L X 26 |
SIDE LOADING HEIGHT | 93″ |
HEIGHT @ REAR CYL. BRACKET | N/A |
HEIGHT @ FRONT SPLASH | 101″ |
HEIGHT @ REAR SPLASH | 101″ |
OVERALL WIDTH | 125″ |
