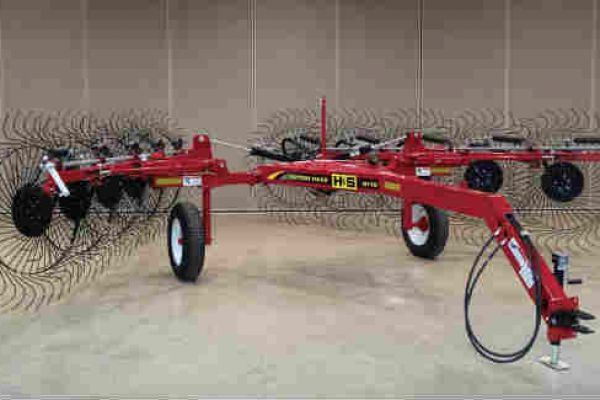

High Clearance Action Rakes features a “KWIK PIK” (patent pending) system for immediate clearance of windrows when raised, as well as greater clearance in the raking position and stability during transport.
An Adjustable Hitch allows you to level the rake for efficient raking.
Right and left side raking is done easily by turning either one of the wing transport valves off.
A 49″ Center Kicker Wheel is optional on all Action Rakes.
The hitch jack is used to adjust the windrow width as shown.
Raking width is easily adjusted by a single pin & clip, and can be fine-tuned with the threaded turnbuckle screw.
The spring suspension system allows each rake wheel to float independently over the ground. The down pressure for ALL the wheels on each side is done by a single a single hand crank.
NUMBER OF WHEELS
TEETH PER WHEEL
RAKE WHEEL HUBS
TRANSPORT HEIGHT IN TRANSPORT POSITION
15′ - 19′
WINDROW WIDTH ADJUSTMENT
3′ - 5′
NO. OF RAKING POSITIONS
GROUND PRESSURE RAKE WHEEL ADJUSTMENT
Independent wheel flotation with single side adjustment crank
