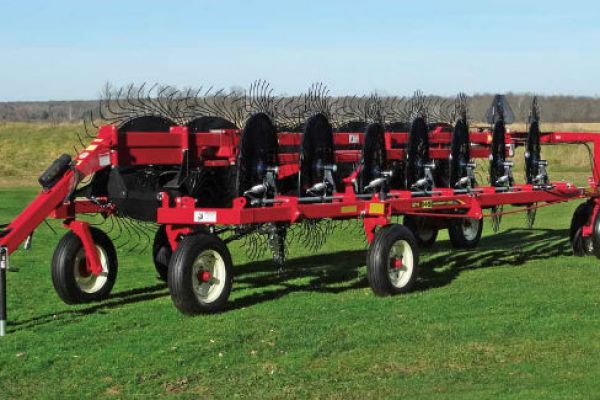

H&S 5114 & 5116 hi-capacity wheel rakes have the raking wheels positioned ahead of the rake arms, main frame beams and transport wheels. coupled with a high and wide end of frame, there are no hang-up points or restrictions when raking the heaviest of hay crops.
A brake band on each front gauge wheels can be easily adjusted to field conditions.
Large independent 60" rake wheels with “Bee Hive” style spring suspension follow the contours of the ground smoothly.
A large diameter rake wheel hub is used for added strength to the rake wheel dish.
The adjustment for the ground pressure on the rake wheels allows the operator to fine tune the 5114 and 5116 wheel rakes to fit varying conditions.
The rake arms feature 2 ball bearings on each end of the arm for long life, smooth operation, and less wear than rakes with bushings.
The 60″ diameter rake wheels turn slower for less tooth wear and deliver more capacity.
The windrow width adjustment is done with a hand crank and adjusts windrows from 38″ to 58″ width.
Independent articulated rake beams have the flexibility to flex 3′ up, or 3′ down.
Limited oscillating offset tandem transport wheels assure a smooth, level ride, even over irrigation tracks.
Raking widths can be hydraulically adjusted in any position up to the pre-determined raking width. Setting the spring loaded stop allows you to set pre-determined raking widths up to 28′ on the 5114, and 32′ on the 5116.
Rake wheel wind boards are standard on the 5114/5116 Rakes.
A 2 or 3 wheel center kicker wheel assembly is optional.
