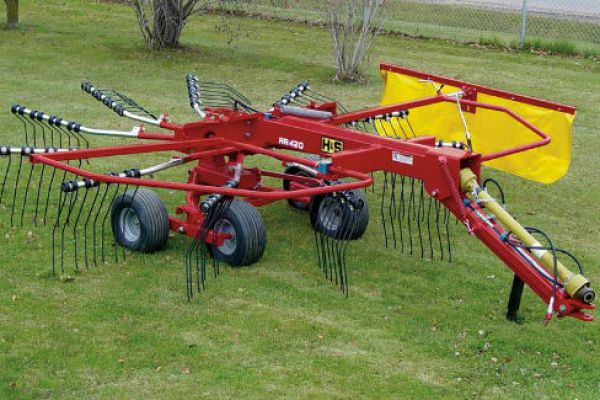

H&S RR420

Double tap to zoom



Features

  • The adjustable front cylinder allows users to fine tune pitch the rake.
  • A constant velocity P.T.O. with slip clutch lets the operator make even, uniform windows even in tight corners.
  • Tine arm storage.
  • Sealed oil bath gearbox.
  • Hydraulic lift cylinder.
  • Tandem axle walking beam with 18x8.5x8 tires.
  • Ground height adjustment.
  • Adjustable swath shield.
  • Quick remove tine arms.

Specifications

RR420
NUMBER OF ARMS 11
NUMBER OF DOUBLE TINES PER ARM 4
WORKING WIDTH 13′ 8″
GEAR BOX Sealed in Oil Bath
ROTOR DIAMETER (WORKING WIDTH) 11′ 2″
TRANSPORT WIDTH 5′ 9″
PTO DRIVELINE WITH SLIP CLUTCH 540 rpm Constant Velocity Overload Protects Gearbox
TIRES 4 Mounted On Tandem Axles 18X8.5x8
HP REQUIRED 30/45
WEIGHT 1369 lbs
