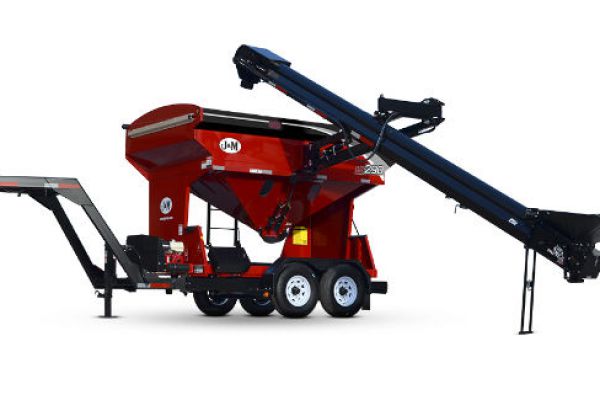

J&M Manufacturing LC290

Double tap to zoom



Features

Lower Center of Gravity

The new LC Series has been designed with a lower overall height and a lower center of gravity, making filling easier and transport more stable, even over uneven terrain.

Larger Capacity

The new LC SpeedTender’s™ larger capacity allows you to transport more seed and keeps you on the go during the busy planting season.

Luxury Controls

A) Standard All-Function Remote
Starts/Stops Conveyor
Raises/Lowers Conveyor
Opens/Closes Tank Doors
Hydraulically Swings Conveyor

B) Optional Deluxe Wireless Remote
Starts/Stops Conveyor
Raises/Lowers Conveyor
Opens/Closes Tank Doors
Hydraulically Swings Conveyor
Electronic Scale Shut-Off

Variable Speed Control
Available On Both Standard And Upgrade Controls

Longer Conveyor

The X-tra Long Conveyor offers greater reach and height to service the tallest and widest planters. A patented V-Belt and skirting design keeps the belt centered, reducing seed damage and chance of premature wear due to misalignment. The new skirting design also reduces the potential of damaging seed and collecting debris. Competitor conveyor designs feature crowned rollers that allow the belt to “walk” back and forth, making it difficult to maintain alignment and prevent premature wear.

Specifications

Model LC 290
Capacity (total) 290 Seed Units
Weight (empty) 6,100 lbs.
Tongue Wt. (loaded) 1,650 lbs.
Conveyor 22' Long, 8" Tube Conveyor
Unload Rate 30 Bushels/Min
Conveyor Reach 49' (front to rear swing)
Axles Two (2), 7,000 lb.; Torsion-Flex Axles w/Electric Brakes
Engine 11 HP Honda Motor w/Electric Start
