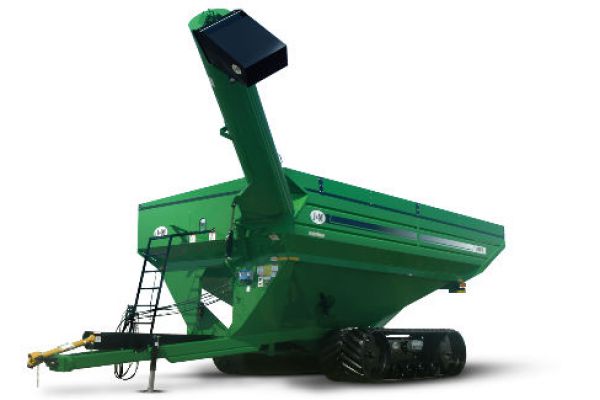

J&M Manufacturing 1051

Double tap to zoom



J&M Grain Carts…

Unmatched Design and Performance

While all grain carts share basic components (like gearboxes and power take-off shafts) and basic features (like folding augers and discharge spouts), not all grain carts utilize these basic components and features in a design that maximizes it’s performance and usability. J&M grain carts offer many design features that create a level of performance that is unmatched throughout the industry.

Unique Auger Design

Only J&M’s Front Folding Auger Design Offers Total Visibility

Designed with the operator in mind, the upper auger is positioned in the corner and extends toward the tractor cab, creating a closer, clearer view when unloading grain. The Front-Folding Auger features a unique design that provides 100% visibility during unloading AND equally important 100% visibility during the folding sequence. Other carts try to use words “corner-like” and
“100% visibility” to appear the same, but they don’t compare.

Balanced Tongue Weight

The weight distribution of J&M grain carts are superb compared to competitive carts. The undercarriage axle is positioned to produce a properly  balanced tongue weight, reducing the stress and upgrade costs on your tractor draw bar.

Computer Balanced Auger

Super-Edge Flighting Balanced to Within One Ounce

All J&M grain carts feature thick flighting with a patented Super-Edge that puts more material where it is needed, on the outer edge. In addition, we reinforce the flighting at critical wear points to increase life and durability.


 Model 1051 (22" Auger)
Capacity 1,050 Bushels
Auger, One Vertical 22" Diameter
Unload Time (minutes) 1.9 minutes
Wheels (2) 30x32, 31x32, 32x36 or 44x32
Tires (2) 900/60R32, 35.5x32, 1050/50R32, 76x50.00 or 1250/50R32
Hubs (2) 10 Bolt or 20 Bolt
Spindles (2) 6" Diameter
Tongue Weight
Empty 2,900 lbs.
Loaded 4,200 lbs.
Total Weight (approx.) 13,100 lbs.
Walking Tandem Dual 1050 (20" Auger)
Wheels Option 1051 (22" Auger)
Capacity 1,025 Bushels
Wheels (4) 16x42, 18x38, 18x42
Tires (4) 480/80R42, 520/85R38 or 520/85R42
Spindles (4) 4 1/2" Diameter
Tongue Weight
Empty 2,900 lbs.
Loaded 4,200 lbs.
Total Weight (approx.) 16,100 lbs.
Tracks Option 1051 (22" Auger)
Capacity 1,075 Bushels
Tongue Weight
Empty 2,900 lbs.
Loaded 4,200 lbs.
Total Weight (approx.) 21,300 lbs.
Compaction Rate 9.93 lbs/sq inch
Compaction Rate LT Series 13.91 lbs/sq inch
