J&M Manufacturing TB-6000

Double tap to zoom

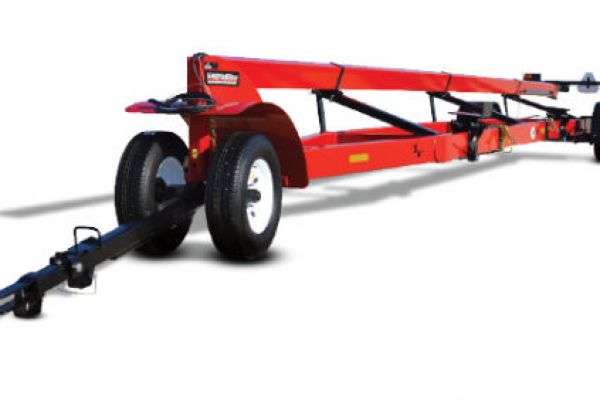

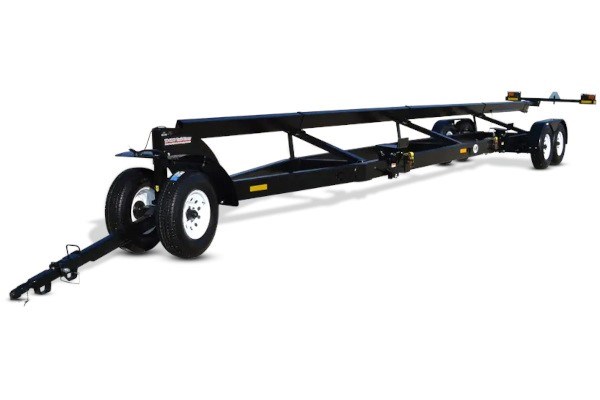

Trail-Blazer Series TB-6000
Overview:
BUILT TO HANDLE YOUR TOUGHEST DEMANDS WITH EASE
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Models TB-6000A and TB-8000A are manufactured in compliance with the American Society of Agricultural Engineers guidelines and features a telescoping light bar with rear red and amber flashing lights, SMV emblem, standard front clevis or optional 2 5/16” ball hitch, two rear torsion axles with optional electric brakes and optional break-away safety brakes.
Models TB-6000H and TB-8000H are manufactured in compliance with the National Association of Trailer Manufacturers and feature rear red brake lights and center light bar, 4-wheel electric wheel brakes, break-away safety brakes, 2 5/16” ball hitch and an owner’s title for licensing.
- Trail-Blazer Series Transport with Ag Standard Lighting Package
- Upper Bar Support Arm for added strength and support when carrying the widest and heaviest heads.
- Front and rear steering with automotive tow setting for true-tracking.
Specifications
Model | TB-6000 |
Weight | 3,500 lbs. |
Capacity (Net) | 15,700 lbs. |
Spindle Size | Two 2 1/4" Diameter (Front Axle); Four 2 1/2" Diameter (Rear Axles) |
Wheel Size | 16"x6" - 6 Bolt |
Tire Size | 235/85R16E |
Steel Upper Bar | 4"x8" |
Upper Bar Length | 32', 38', 42' or 48' Available on All Models |
Arched Main Frame | 4"x8"x1/4" Tubing on All Models |
Rear Electric Brakes | Optional on Ag Models, Standard on Hwy Models |
Deluxe Light Package | Ag Standard or Hwy Standard |
