Axent™ 100.1 Axent 100.1
Overview:

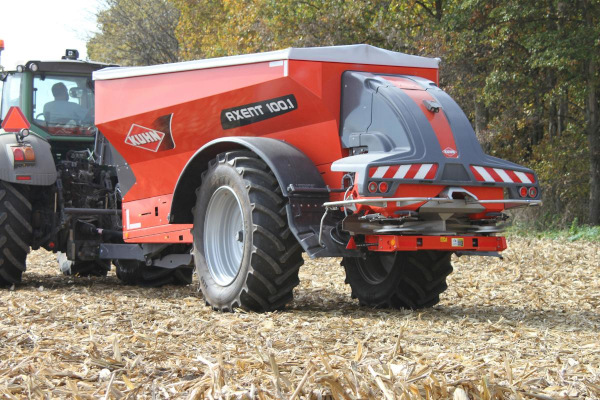

The new Axent® 100.1 trailed fertilizer spreader is the ultimate large acreage dry fertilizer and lime applicator providing operators with high precision rate control, wide working widths, high capacity and lime capability, Opti-Point and Vari-Spread Dynamic and IOSBUS compatibility.
This machine is unique since you get two machines in one since it is not your typical large-trailed spreaders. The Axent 100.1 has a removable spreading system capable of using either an Axis or Lime PowerPack. For granular fertilizer and cover crop seeding, the Fertilizer pack can be equipped for maximum results. If wanting to spread agriculture lime or organic fertilizers, the optional lime pack can be installed in less than an hour for optimal seeding. Standard weigh cells allow for exact recording and documentation speed up reloading in the field. The Axent is designed to maximize a producer’s productivity whether spreading on your own ground or custom applying on another’s. - Less
The new Axent® 100.1 trailed fertilizer spreader is the ultimate large acreage dry fertilizer and lime applicator providing operators with high precision rate control, wide working widths, high capacity and lime capability, Opti-Point and Vari-Spread Dynamic and IOSBUS compatibility.
This machine is unique since yo... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
High Precision Rate Control
The EMC System continuously monitors and makes automatic adjustment to keep programmed rate regardless of ground speed, material or field conditions.
Wide Working Widths
Wide working widths allow you to spread fertilizer with a high precision rate of up to 164’ depending on the material you are spreading.
High Capacity and Lime Capacity
With 353 cubic feet of capacity, the Axent is designed to cover large acreages, the lime pack increases machine versatility.
Opti-Point and Vari-Speed Dynamic
Automatic GPS control of headland engagement, border spreading and section control.
ISOBUS Compatibility
Have the ability to “plug and play” with existing ISOBUS virtual terminals for ultimate simplicity, variable rate ready without needing an external rate controller.
Specifications
| Model | Axent 100.1 |
| Basic capacity | 335 ft³ (9.5 m³) |
| Total width | 10' (3.05 m) |
| Axle spacing | Fixed: 120" (305 cm) Steering: 90" (229 cm) |
| Total length | 25' (7.6 m) |
| Total height | 9'8" (2.95 m) |
| Conveyor belt width and type | 31.5" (80 cm) wide, high endurance rubber fabric (8 mm thick) |
| Axis PowerPack - spreading width | 60' - 164' (18.5 - 50.2 m) depending on material and disc selection |
| Axis PowerPack - standard spreading discs | S6 VxR+ |
| Axis PowerPack - application rate adjustment | Up to 1,100 lbs (500 kg) / min |
| Lime PowerPack - spreading width | 20' - 60' (6.10 - 18.3 m) depending on material |
| Lime PowerPack - standard spreading discs | U2 |
| Lime PowerPack - application rate adjustment | 10 - 5,999 lbs/acre |
| Tires | Fixed axle: 480/80R50 Steering axle: 650/65R42 (floater style tire) |
| Control terminal | ISOBUS compatible (optional terminals available) |
| Section control | Standard (required activation on terminal used) |
| Weigh scales | Standard |
| Backup camera | Standard |
| Hopper cover | Standard hydraulic folding from cab |
| Hitch | Cat. 3 & 4 drawbar hitch |
| PTO type | 1 3/8" 21-spline |
| Gearbox | 1,000 rpm |
| Minimum power requirement | 180 hp (134 kW) |
| Required tractor hydraulic connections | 2 DA (main spreader functions via integrated hydraulic system) |
| Fertilizer identification cards and spread charts | Standard in imperial and metric |
| Trailer weight empty | 9,350 lbs (4,241 kg) |
| Maximum rated payload for road travel | 19,000 lbs (8,618 kg) |
| Maximum rated payload for field spreading | Fixed axle: 22,000 lbs (9,979 kg) Steering axle: 28,000 lbs (12,700 kg) |
