Kuhn MASTER 103 3 (2E+1)

Double tap to zoom

Master 103 MASTER 103 3 (2E+1)
Overview:

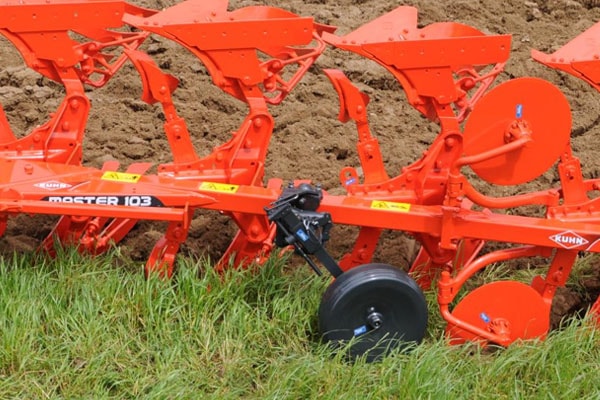

The Master 103 Series plows are built to be robust, reliable and economic machines. Only available in the Multi-Master version, these plows have a large trash burial capacity with the ability to adjust the traction-bolt models from 28” to 29 1/2” of under-beam clearance. This range features independently mounted skimmers for quick and easy adjustment. The 103 plows have a depth control wheel in line with the frame and a transport wheel option fitted with suspension. - Less
The Master 103 Series plows are built to be robust, reliable and economic machines. Only available in the Multi-Master version, these plows have a large trash burial capacity with the ability to adjust the traction-bolt models from 28” to 29 1/2” of under-beam clearance. This range features independently mounted skimme... + Read More
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Monobloc Headstock
High Strength Frame
Triplex Steel
Standard Rubber Depth Wheel
Specifications
Model | MASTER 103 3 (2E+1) |
Number of bottoms per side | 3 |
Extendable by one bottom | No |
Standard moldboards | H4 long helicoidal |
Hydraulic rollover with 1 cylinder | Standard |
Maximum tractor power | 86 hp (64 kW) |
Approximate machine weight for T version | 1,631 lbs (740 kg) |
Approximate machine weight for NSH version | 1,973 lbs (895 kg) |
Working width | 14" or 16" (35 or 40 cm) delivered at 16" (40 cm) |
Underbeam clearance | 27.5" (70 cm) |
Point to point clearance | 35" (90 cm) |
Offset and angling adjustment | Mechanical |
Hitch | Cat. 2 swift hitch |
Adjustable depth wheel with tire | 600 x 210 mm standard |
