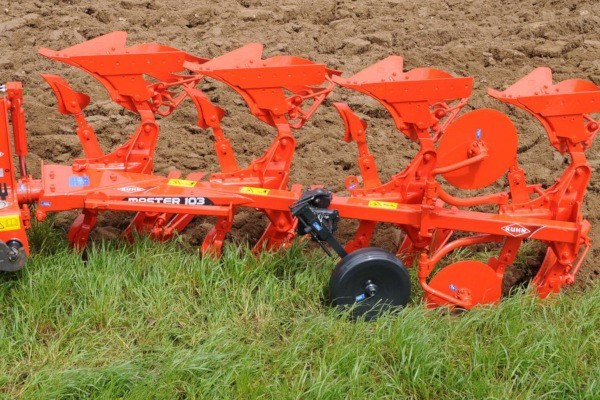

Kuhn Master 103 2E

Double tap to zoom



Monobloc Headstock

Simple adjustment of leveling by stops. Easy storage with built-in toolbox in head-stock on 3- and 4-bottom NSH models.

High Strength Frame

Simplified adaptation to tractor wheel setting. Mechanical adjustment of plow angling (front furrow width).

Triplex Steel

Moldboards are made of unequal layer, heat-treated Triplex steel that have an increased working life up to 40% over standard steel and a hard wearing surface over 1/8” thick.

Standard Rubber Depth Wheel

The depth wheel follows any change of plowing width. It features simple bolt adjustments with the ability to set left and right sides independently. It can be placed in many locations on the frame to ensure optimum positioning for all conditions.


Model MASTER 103 2E
Number of bottoms per side 2
Extendable by one bottom Yes
Standard moldboards H4 long helicoidal
Hydraulic rollover with 1 cylinder Standard
Maximum tractor power 57 hp (43 kW)
Approximate machine weight for T version 1,168 lbs (530 kg)
Approximate machine weight for NSH version 1,488 lbs (675 kg)
Working width 14" or 16" (35 or 40 cm) delivered at 16" (40 cm)
Underbeam clearance 27.5" (70 cm)
Point to point clearance 35" (90 cm)
Offset and angling adjustment Mechanical
Hitch Cat. 2 swift hitch
Adjustable depth wheel with tire 600 x 210 mm standard
