Versatile & Simple
Multiple Merging Possibilities

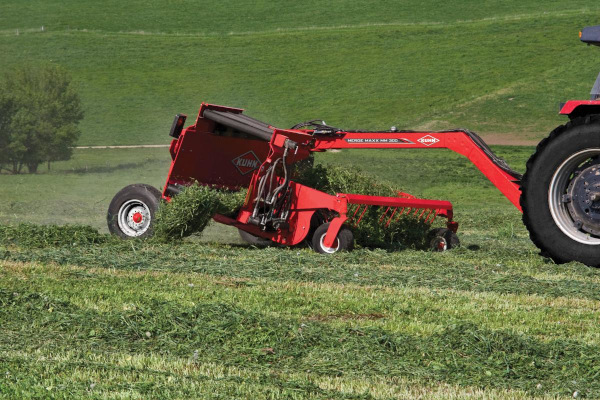

The merger can be operated pulling directly behind the tractor, extended all the way to the right, or anywhere in between for compatibility with various sized mower conditioners.
Simple, Efficient Windguard
This standard, curved windguard greatly helps create fluffy, well-formed windrows by keeping the crop close to the pickup and delivering it to the center of the belt. This control smooths out crop bunching, resulting in improved harvester efficiency. Simple adjustment points on each end allow the operator to tailor the windguard to the exact crop type and volume. An optional high-capacity windguard is available for operators who merge higher volume crops, such as ryegrass.
The 15-degree angled conveyor provides a seamless transition for the crop as it comes off the pickup. This allows the full capacity of the belt to be utilized in addition to naturally inverting the crop upon discharge.
The floating pickup assembly follows the terrain, supported by large-diameter gauge wheels that set the pickup height. This maintains the tine height so that valuable forage is picked up and the crop stubble is protected.
Attaching directly to the tractor PTO, the self-contained hydraulic drive allows the merger to be operated by most tractors regardless of hydraulic capacities.
Simple, Time-Saving Features
The conveyor belt is self-cleaning and requires no tracking adjustment. The quick-release tensioning system simplifies storage and maintenance.
Simple Drawbar Attachment
Attachment to the tractor is simple. The drawbar hitch allows for fast attachment without cumbersome hitch extensions.
The two-piece poly tine bar bearing greatly simplifies periodic maintenance. Unlike competitive machines, which must remove tine bars and tines to replace worn bearings, the split design allows you to replace the bearing in under one minute. Additionally, bearing life is maximized and friction properties are minimized with a specially formulated bearing material.
Options Tailored to Make your Life Easier
In-Cab Control Terminal
The optional electro-hydraulic controls manage merger functions on the go, fine-tune pickup speed, gather crop at end rows, shift the conveyor, and engage the optional extension, all conveniently from the tractor seat.
All of the following options require the in-cab control terminal.
Electronic Variable Pickup Speed Control
A manual valve is located on the machine for adjustment as needed. With the optional electronically controlled system, you can quickly and easily adjust the pickup speed from inside the cab on-the-go, to perfectly match crop conditions. With this option you can maximize leaf retention, especially if merging drier legumes, such as alfalfa.
Hydraulic On/Off Control
Create clean windrows with neat ends to maximize crop uptake and simplify the harvesting process. The simple, single button control allows the belt to be disengaged quickly to keep the crop from being sent into the headland at end rows. The gathered crop can then be sent into the subsequent windrow.
Conveyor Side Shift
You can manually adjust the conveyor up to 2’ to the right to match up with differing mowers and windrow widths. With the optional hydraulically controlled conveyor side shift, you can perform the same function without leaving the cab. This is especially useful if merging behind multiple cutting units of varying widths.
