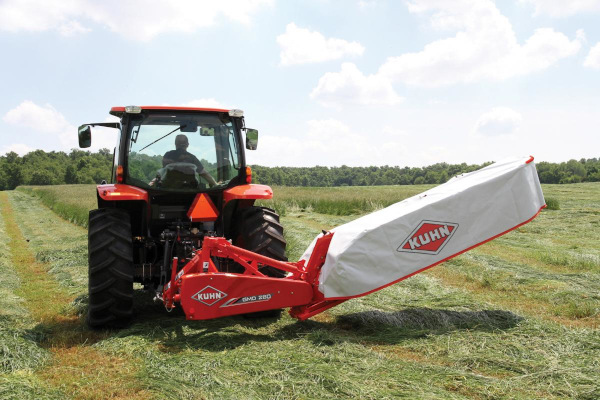

Kuhn GMD 280

Double tap to zoom



Features

Clean and Even Cutting

Proven 100 Series Cutterbar

Due to the high reliability, excellent crop cutting, and overall adaptability to varying terrains, the 100 Series cutterbar is a staple in the Premium Series. See for yourself by taking a closer look at what the 100 Series cutterbar has to offer.
1.Withstands the highest loads: special high-capacity bearings fitted in a one-piece sealed housing are not subject to distortion.
2.Increased service life: disc pinion shaft bearings endure radial forces for maximum bearing life. This optimum position improves the load balance.
3.Protection should an obstacle be struck: the Protectadrive® system is designed to protect the cutterbar gear train and minimizes the risk of downtime.
4.High-wear resistance: knife attachment hardware is fully protected. For added safety, heat-treated steel cups are welded to the disc.
5.Minimum wear or distortion risks: idler gear fasteners are located in heat treated steel cups. Correct alignment is ensured without the risk of distortion.
6.Long-term reliability: large-diameter gearwheels in high-tensile forged steel with reinforced teeth.
7.Perfect sealing: top-quality o-rings used on cutterbar bearing housings for a perfect, leak-free seal.


Heavy-Duty Discs

These discs offer a service life that outmatch all other discs on the market and are adapted to intensive mowing conditions. The GMD Premium Series mowers are equipped with heavy-duty discs, as standard. Beveled knives are standard and ribbed knives are optional.

The shape of the discs allows for a quick transfer of crop rearward, allowing the crop to quickly be formed into a swath. A recut of the grass is therefore avoided. As crop leaves the cutting area, no outside support greatly reduces the chance of crop wrapping.

Swath Wheel

The Premium Series comes standard with an outside swath wheel. The swath wheel improves crop flow by providing more positive engagement of crop to leave the cutterbar, especially in taller crops.

Practical Features to Save Time During Work

Protectadrive® Safety

Every minute saved during the hay season is precious. Ultimate protection, from the externally removable Protectadrive disc bearing stations, provides maximum reliability and quick service. In the event of an impact between a disc and an obstacle, the shaft holding the disc can shear just above the bearing. This is thanks to its carefully dimensioned shear groove. As a result, the gear teeth are protected.

Belt Tensioning

Belt tensioning is semi-automatic and the adjustment is done with the same tool. The easy to adjust system keeps the proper tension on the belts to increase belt life. This tool is also used for opening the cover and changing the blades.

One Tool for All Adjustments

One tool, supplied with the mower and stored in an integrated toolbox, cab perform all of the following tasks:
•Adjustments of the flotation spring
•Unlocking the safety cover
•Belt tension adjustment
•Replacement of knives (if bolted)

Easily Change to Transport Position

The GMD Premium Series can be pivoted hydraulically into the transport position via an optional pivot cylinder. This means that changing from work to transport mode has never been easier. You will especially appreciate the time saved when working in small fields.

Adaptable to Varying Terrain
Safety Breakaway Mechanism

Should an obstacle be struck, the safety breakaway causes the mower unit to swing slightly backwards. The impact is significantly reduced. You can reset the device by simply reversing.

Cutterbar Flotation

Flotation of the cutterbar is adjusted by spring tension. A heavier compensating spring ensures optimum ground pressure through a wide range of terrain and contours. Through the design of the mowing unit articulation, mowing of banks and terraces is possible at a tilt angle of up to 35° and down to -25°, depending on the model. Adjustment can easily be done with the provided tool.

Smoother Operation on Headlands

To limit the mowing unit lift in headland turn position, a hydraulic shut-off valve is used. This enables smoother operating and increased structure life.

3-Point Hitch

The hitch design provides increased durability in extreme working conditions. It also includes adjustable lower offsets and the ability to accept Cat. 2/3N quick hitches without the need of an adapter bracket.

Specifications

Model GMD 280
Working width 9'2" (2.8 m)
Transport width 5'3" (1.6 m)
Transport height 10'11" (3.3 m)
Number of discs 7 HD Discs
Removable Protectadrive® disc bearing stations Standard
Cutterbar suspension Spring
Cutting height 1.1" - 1.9" (30 - 50 mm)
Safety breakaway system Mechanical lock as standard
Unlocking system from the tractor cab Via rope
Mowing angle +35° / -25°
Adjustable lower links Standard
Headland turn position Integrated hydraulic cylinder
Average swath width 6'7" (2.0 m)
Outside swath wheel Standard
Hitch 3 point, Cat. 2
Transport position Vertical folding via hydraulic cylinder with automatic lock
PTO speed 540 rpm
Overrunning PTO clutch (free wheel) Standard
Minimum PTO power requirement 50 hp (37 kW)
Required tractor hydraulic connections 1 SA
Road lights and signaling Standard
Machine weight approx. 1,440 lbs (654 kg)
Check chain Standard
Shipping information: 2 machines/crate* - gross total weight 3,005 lbs (1,363 kg)
