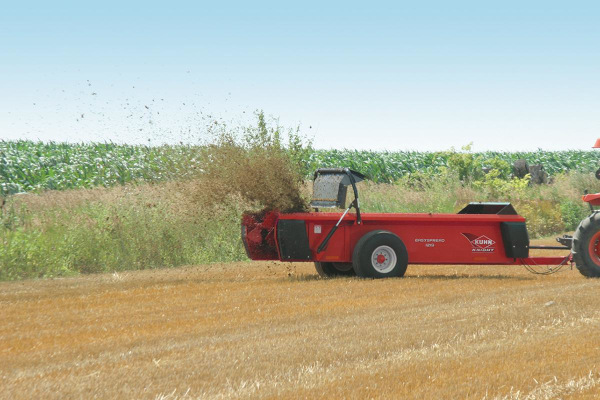

Kuhn 1219

Double tap to zoom



Features

Built To Last

Dependable Construction for Long Life

The all-steel welded construction provides a solid framework and includes a reinforced tongue that pulls directly from the full-width axle. This results in a stronger, more dependable spreader since the unit is pulled from the axle rather than the front of the box.

Friction-Resistant Poly Floor

The one-piece poly floor provides more strength and durability than individual tongue and groove boards. It reduces friction resulting in lower horsepower requirements than alternative types of floors. The 1219 is equipped with a polylaminate floor.


Uniform Spread Pattern

Horizontal Beaters

The EasySpread® 1200 Series feature horizontal beaters. Horizontal beaters are most effectively used in spreading applications with dry, coarse materials such as pen pack or yard scrapings. They work well in situations where fast unloading and high application rates are desired. Rooster comb paddles are easily removable or replaceable, and provide enhanced spreading performance.

Multi-Speed Apron Gearbox

The multi-speed apron gearbox provides low, high and cleanout speeds for flexibility based on material type and application rate.

Low-Maintenance Design Features

Mechanical V-Belt Drive

The V-belt drive design is simple and easy to maintain. The pulleys and belts are accessible for routine maintenance through the hinged front door.

T-Bar or T-Rod Chain and Slat Apron

Single apron slats provide simple, low-cost dependability. The T-Bar and T-Rod chains are durable and easier to service compared to a pintle chain.

Specifications

Model 1219 Trailer
CAPACITY
Struck Level 90 ft³ (2.5 m³)
Heaped 165 ft³ (4.7 m³)
Maximum Net Load 8,505 lbs (3,858 kg)
DIMENSIONS
Inside Box Length 156" (396 cm)
Inside Box Depth 22" (56 cm)
Inside Box Width 48" (122 cm)
Overall Tread Width 81" / na (206 cm / na)
Overall Height - Top of Beaters 68" / na (173 cm / na)
Overall Height - Top of Splash Guard 55" / na (140 cm / na)
Loading Height 48" / na (122 cm / na)
Ground Clearance 15" / na (38 cm / na)
Minimum PTO Power Requirement 45 hp (34 kW)
BEATERS
Standard Number 1
Number of Paddles or Teeth 8
Beater Diameter 26" (66 cm) / optional 14" (36 cm)
Drive Belt Type B
PTO Drive Speed 540
APRON
Number of Aprons 1
Shaft Diameter 1.5" (3.8 cm)
Sprockets 6-tooth
Chain T-bar or T-rod
Slat Size 1.0" x 2.0" (2.5 cm x 5 cm)
Slats per Apron 13
Speed Selection Slow / fast / clean out
Chain Drive 60
BOX AND UNDERCARRIAGE CONSTRUCTION
Front Panel and Sides 12 GA
Floor 0.5" (1.3 cm) polylaminate
Trailer Axle Single
Spindle Diameter 2.5" / na (6.4 cm / na)
Hubs 8-bolt
