Built To Last
All-Steel, Welded Construction
An all-steel construction provides the backbone and solid framework for these spreaders. This simple, yet effective design keeps the sides and beater panels aligned for the life of the machine. The all-welded construction includes a reinforced tongue that pulls directly from the axle for added strength and durability. An A-frame assembly keeps the sides and beater panels correctly aligned for strong box integrity. A round-tube bottom, on the rear, promotes self-cleaning by helping prevent material breakup.
This simple design eliminates the need for extra chains and sprockets that are necessary for a side-mounted driveline. This simple design uses high-quality sealed bearings to provide reliable power delivery with lower maintenance requirements. The driveline is located underneath the unit, thus reducing the possibility of damage during loading.
To ensure quality and dependability the PS 100 Series spreaders are equipped with a dual apron which helps to distribute the load more evenly. Customers have the choice of 667 X or XH Pintle apron chain, with an additional choice of a t-bar chain on the PS 150. The dual apron features offset 1 ½” x 2” steel slats which provide more consistent feeding of material. The dual apron also offers increased rigidity and longevity for both apron chains and slats. A hydraulic-driven, parallel-shaft gearbox provides reliable power with low maintenance. The parallel-shaft apron gearbox is designed for heavy-duty use. It is stronger, more efficient, requires less power and generates less heat than worm-drive gearboxes.
High-Density, Two-Piece Poly Floor
A two-piece, ⅝” solid poly floor provides more strength and durability than individual tongue and groove boards while reducing friction. This means that less power is required for unloading versus alternative steel or wooden floors. The poly floor provides impact resistance when dropping heavy loads into the spreader. The two-piece design allows for expansion or contraction with changing temperatures. The plastic floor also reduces winter freeze-down issues to provide trouble-free service and long life.
Discharge and Endgate Options to Meet Your Spreading Needs
Choice of Discharge Options

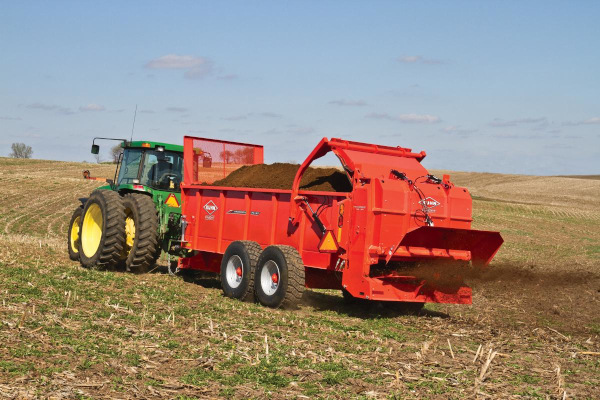

PS 100 Series spreaders are available with the choice of horizontal beaters, VertiSpread® vertical beaters or the AccuSpread® spinner discharge (PS 160 only), allowing you to customize your machine to your operation. To give you even greater machine versatility, beater modules can easily be removed for safe storage while stockpiling manure or when switching modules.
Horizontal beaters are most effectively used in spreading applications with dry, coarse materials such as pen pack or yard scrapings. They work well in situations where fast unloading and high application rates are desired.
The horizontal module on PS 100 Series models comes standard with two, 20" beaters. An optional lower beater is also available.
VertiSpread® Vertical Beaters
VertiSpread® vertical beaters provide quality spreading performance for a wider variety of dry materials, from tough materials like pen pack, to finer materials like dry dirt compost. They can provide the same fast unloading and high application rates as horizontal beaters, but with a wider spread pattern and more consistent material breakup.
Heavy-duty vertical beaters, equipped with 3/8” flighting and hardened steel beater tips, provide a durable beater capable of handling almost anything. The beater flighting overlaps ensuring an optimal spread pattern. All beaters are equipped with adjustable, two-position, bolt-on teeth which makes maintenance and replacement easy. For added strength and durability, through-hardened teeth are available. Power to the beaters is routed through a fully enclosed, integral gearbox, providing a strong and reliable power supply with low maintenance requirements.
AccuSpread® Spinner Module
The AccuSpread® spinner discharge offers consistent spreading of dry, flowable materials such as dry dirt compost, poultry litter and lime sludge. It provides the widest, most uniform spread pattern available, and coupled with the use of the metering gate, is able to accurately spread nutrient-dense materials at low rates. Twin spinner discs rotate at 520 RPM and work together to provide a wide and uniform spread pattern, for a total spreading width up to 60 feet. Available on PS 160 only.
The swinging endgate can be used with the horizontal and VertiSpread® beater options. This heavy-duty, welded endgate provides outstanding strength and durability. Hydraulic cylinders raise the endgate for optimum load clearance and, when raised, it swings straight down to act as a debris deflector.
A metering endgate is standard for PS 160 spreaders equipped with the AccuSpread® module, optional on PS 160 spreaders with VertiSpread beaters. The metering endgate provides enhanced control of the material flow on VertiSpread and AccuSpread® machines. This accurate metering allows the ability to spread nutrient-dense materials at low rates to take best advantage of the nutrient value.
Reduced Soil Compaction
Heavy-Duty Tandem Axle
A rugged, tandem axle provides greater flotation and reduced soil compaction. A tandem axle allows the unit to travel across a wide range of terrain with ease. Bogie systems utilize a simpler design with fewer moving parts which reduces maintenance requirements and increases dependability.
