Unverferth Drill and Planter Fills

New Equipment / All Brands / Unverferth / Bulk Handling / Conveyors / Drill and Planter Fills

Double tap to zoom

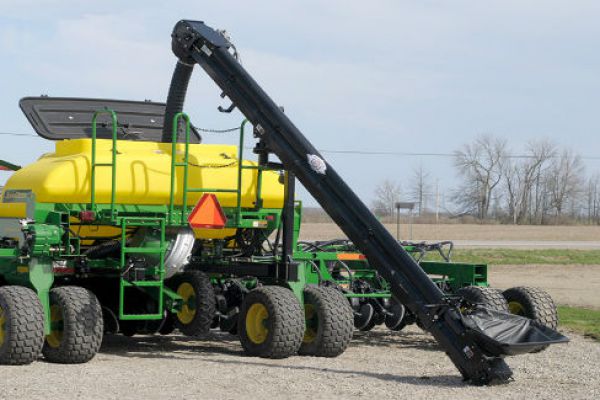

Cupped and cleated 8-inch belt inside of 6-inch tube gently carries seed to planter or drill compartments
Conveniently placed, dual on/off controls and an 8'-telescoping downspout on all models allow for easy, one-person filling of the seedbox from the ground or planter platform
Models are available for 1690, 1890 and 1990 drills as well as model 1770, 1790 CCS and DB-Series planters
Super-gentle, variable-speed conveyors feature tubular steel construction with powder-coat finish for longer life
Moves seed at rates up to 10 bushels per minute for quick filling
Two-inch vulcanized paddles are spaced 9 inches apart for carrying large seed volumes at low speeds
Conveyor hoppers are fitted with canvas cover for minimizing debris accumulation during planting, transport and storage
A clean-out door is standard for easily removing leftover seed when switching varieties
Well balanced design allows easy movement into working or transport position
Conveyors for drill models 1690, 1890 and 1990 store across the rear of the drill within its transport height and width, similar to auger models, for enhanced roadway safety

Model	JD 1690/1890/1990 CCS	JD 1770/1790 CCS	JD 1770/1790 CCS w/Fert. Option
Size	6" x 16' Rigid	6" x 18' Rigid	6" x 18' Rigid
Storage	Rear	Center	Center
Added Transport	-	24" length	5" height 48" length
Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice.
