Unverferth S-Tine Levelers

Double tap to zoom



Features

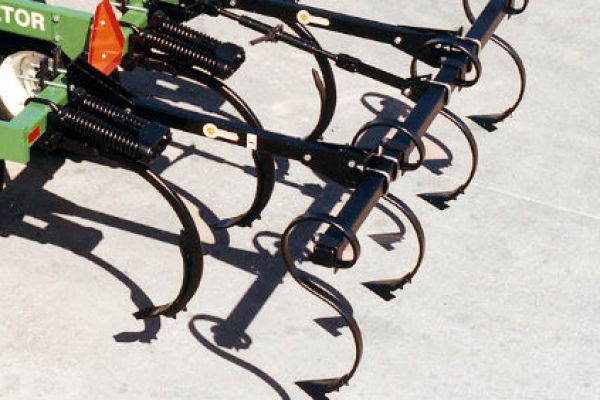

S-Tine Leveler

For those who prefer a one-pass chisel plant operation, the S-Tine leveler and optional One-Bar Harogator® leveler add the finishing touches needed for optimum soil leveling and residue incorporation. There are a hefty 23 inches of underside clearance beneath the heavy-duty 5/16“ x 1 3/4” S-Tines with 7-inch sweeps, and the 3” x 3” heavy-wall toolbar provides an abundance of operational strength. Residue flow is easily regulated by simple pin settings for adjusting the angle of the mounting arms. Powder-coated painting assures a durable finish. Universal mounting arms are angle adjustable and fit toolbars from 3” x 3” up to 7” x 7”. S-Tine levelers are available in models to fit 8’ to 28’ chisel plows.

Specifications

S-Tine Levelers

  • S-Tine levelers feature heavy-duty 9/16" x 1-3/4" shanks with 7" sweeps
  • Heavy-wall 3" x 3" toolbar for added strength
  • Provides 23" of underside clearance for optimal residue flow
  • Flip-up and over design for space-saving storage
  • Rigid and folding models are available to fit from 8' to 28' working widths
  • Ability to mount onto toolbars up to and including 7" x 7"
