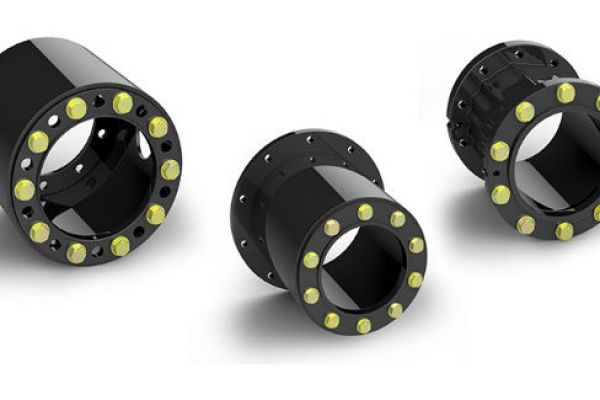

Unverferth Wheel Hub Extensions

Double tap to zoom



Features

  • Dual and triple spool-type extensions are constructed of cast ductile iron for greater durablility and longevity
  • Standard bolt pattern, 9- and 10-hole extensions are available for dual and triple wheel applications in 5", 8", 10", 13", 15", 18", 21" and 24" lengths
  • Go wider and turn tighter with MFWD front hub extensions that provide single wheel spacing of your tractor to straddle 4 - 30" rows
  • Custom-built extensions are available to meet most every other wheel spacing need. They can be manufactured as small as 8-hole and 2" wide, up to 12-hole and 29" wide to fit tractors, harvesting equipment and other implements with larger wheels
  • Powder-coat finish in black or yellow enhances corrosion resistance and keeps them looking looking their best

Specifications

Regardless of tillage preference or row width, Unverferth has the extensions you need to center wheels down the middle of the row. From dual- and triple-axle spacers to MFWD hub extensions, Unverferth extensions keep your wheels on the track. Dual and triple spool-type extensions are constructed of cast ductile iron for greater durability and longevity. MFWD front hub extensions let you straddle four 30” rows and MFWD drum style hub extensions are available for popular makes and models of today’s tractors. Custom-built extensions are also available to meet most every other wheel spacing need.
