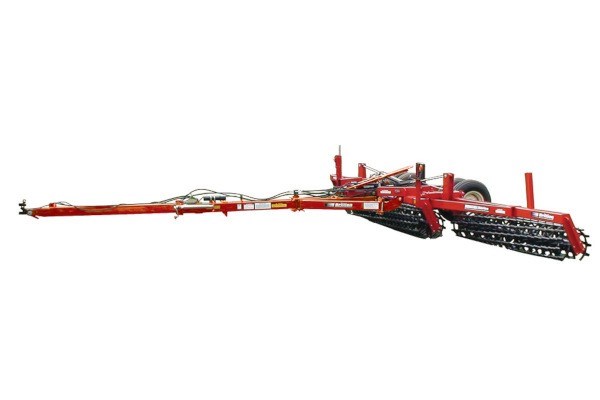

Brillion X26
X26
X Series, Folding Pulverizer - 20 ft to 26 ft
Overview:
All models in the Brillion Pulverizer line have a common denominator…HIGHER YIELD. Producers know that higher yields start with a properly prepared seedbed and a firm seedbed is critical to maintain a uniform planting depth. The ideal seedbed should be firm with fine particles at the seed depth and should have a layer of loose mulch on the surface to slow evaporation and conserve moisture.
Share This Product:
Features
X Series, Folding Pulverizer - 20' to 26' Models
- Working Widths From 20’1" to 26’1"
- Transport Heights Under 8'2"
- Transport Width 11'
- 8” Pulverizer Axle
- 1 ¾” Trunnion Bearings
- Maintenance Free Rockshaft Bearings
- Pulverizer Wheel Styles:
- 20" Notched Ductile Iron
- 20" Optimizer Ductile Iron
- 20" Crowfoot Ductile Iron
- 20” Notched Ductile Iron H (Heavy)
- 22” V-Style Ductile Iron
Specifications
| Model | X26 |
| Approximate Weight | |
| (XDS) 20" Notched Ductile Iron Wheels with Scrapers | 6,053 lbs. (2,746 kg) |
| (XD) 20" Notched Ductile Iron Wheels Excluding Scrapers | 5,766 lbs. (2,615 kg) |
| (XO) 20" Optimizer Ductile Iron Wheels | 6,334 lbs. (2,873 kg) |
| (XC) 20" Crowfoot Ductile Iron Wheels | 5,418 lbs. (2,458 kg) |
| (XHS) 20" Notched Ductile Iron H (Heavy) Wheels with Scrapers | 6,947 lbs. (3,151 kg) |
| (XH) 20" Notched Ductile Iron H (Heavy) Wheels Excluding Scrapers | 6,664 lbs. (3,023 kg) |
| (XHR) 20" Notched Ductile Iron H (Heavy) Wheels with Sprockets | 7,851 lbs. (3,561 kg) |
| (XVS) 22" V-Style Ductile Iron Wheels with Scrapers | 6,651 lbs. (3,017 kg) |
| (XV) 22" V-Style Ductile Iron Wheels Excluding Scrapers | 6,086 lbs. (2,761 kg) |
| Approximate Tongue Weight | |
| Drawbar, Transport | 615 lbs. (279 kg) |
| Operation | Under 500 lbs. (227 kg) |
| Working Width | 26 ft. 1 in. (7.9 m) |
| Transport Width | 11 ft. (3.4 m) |
| Transport Height | 7 ft. 11 in. (2.4 m) |
| Overall Length | 23 ft. 1 in. (7.0 m) |
| Road Clearance | |
| XDS, XD, XO, XC, XHS, XH, XHR Models | 11.625 in. (295 mm) |
| XVS, XV Models | 10.625 in. (270 mm) |
| Mechanical Transport Lock | Standard |
| Hydraulic Circuits Required | 1 |
| Number of Pulverizer Wheels | |
| (XDS) 20" Notched Ductile Iron Wheels with Scrapers | 80 |
| (XD) 20" Notched Ductile Iron Wheels Excluding Scrapers | 80 |
| (XO) 20" Optimizer Ductile Iron Wheels | 52 |
| (XC) 20" Crowfoot Ductile Iron Wheels | 52 |
| (XHS) 20" Notched Ductile Iron H (Heavy) Wheels with Scrapers | 80 |
| (XH) 20" Notched Ductile Iron H (Heavy) Wheels Excluding Scrapers | 80 |
| (XHR) 20" Notched Ductile Iron H (Heavy) Wheels with Sprockets | 80 |
| (XVS) 22" V-Style Ductile Iron Wheels with Scrapers (6 in. Spacing) | 52 |
| (XV) 22" V-Style Ductile Iron Wheels Excluding Scrapers (6 in. Spacing) | 52 |
| Axle Size | |
| XDS, XD, XO, XC, XHS, XH, XHR Models | 8 in. (203 mm) |
| XVS, XV Models | 4.5 in. (114 mm) |
| Hitch | Pull-Type with Hydraulic Transport |
| Tire Size | 9.5L x 15 Tires on 6 Bolt Rims |
| Scraper Kits | Standard on Models with 'S' |
| Weight Kit | Optional |
| Electronic Acre Meter | Optional |
| LED Safety Warning Lights & SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Powder Coat Paint, Red | Standard |
| Horsepower Requirements | 3 to 5 HP per ft. (2.2 to 3.7 kW per m) |
| Horsepower Requirements As Companion Tool | 1 to 3 HP per ft. (0.75 to 2.2 kW per m) |
| Recommended Operating Speed | 3 to 8 MPH (4.8 to 12.9 km/h) |
