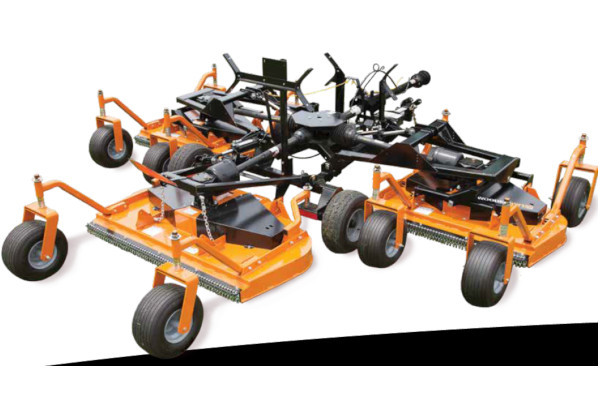

Woods TBW150C

New Equipment / Woods / Finish Mower / Turf Batwing / TBW150C

Double tap to zoom

12.5-foot cutting width
Tractor HP range: 25-60 hp
Three decks mounted to heavy-duty trailer offers triple cut capacity; mow up to seven acres per hour at five miles per hour
Superior cutting capabilities combined with contoured wing decks, to let you quickly cut large, uneven areas of turf while maintaining quality
Rounded front, tapered rear deck design allows mowing close to objects without damage
Round skid rod adds strength to deck skirt and allows deck bottom to glide over roots and uneven turf
Folds down to a width of only 93-inches to fit into a standard 8-foot garage door

PTO Horsepower	25 - 60 hp
Cutting width	150"
Cutting height	1" - 4.5"
Wing deck cutting width	54"
Deck overlap	6"
Overall width	151"
Transport width	93"
Maximum overall length	135"
Transport length	126"
Horsepower required	25 - 60 hp
Splitter gearbox horsepower	100 hp
Deck gearbox horsepower	35 hp
Blade tip speed	16,200 fpm
Drive type	gearbox over v-belt
Input driveline	Cat 3 CV
Wing drivelines	Cat 3
Transport tires	(2) 20 x 8
Caster wheel bearings	power metal bushing
Caster wheels	(10) 4 x 10 solid
Deck thickness	10 gauge, steel plate
Wing deck lift cylinders	3" x 10", single acting
Center deck lift cylinders	3" x 8" single acting
Trailer frame construction	1.25" wall tubing
Hitch adjustment	floating clevis, multi-position
Blade spindles bearings	greaseable ball bearings
Blade dimensions	(9) 1/4" x 2-1/2"
Blade spindles	(9) cast-iron
Cutting height adjustment	spacer on caster
Belts	B-section, Kevlar®
Belt adjustment	spring loaded idler
Chain shielding	optional
