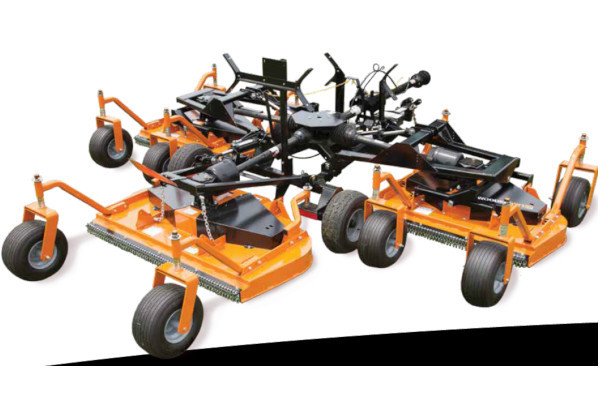

Woods TBW180

New Equipment / Woods / Finish Mower / Turf Batwing / TBW180

Double tap to zoom

15-foot cutting width
Tractor HP range: 35-80 hp
Carrier bearing on the input driveline provides support, making it easier to attach and allowing for tighter turns
Superior cutting capabilities combined with contoured wing decks, to let you quickly cut large, uneven areas of turf while maintaining quality
Rounded front, tapered rear deck design allows mowing close to objects without damage
Round skid rod adds strength to deck skirt and allows deck bottom to glide over roots and uneven turf
Optional mulching kit, highway light kit and anti-scalp roller kits available

PTO Horsepower	35 - 60 hp
Cutting width	180"
Cutting height	1" - 5"
Wing deck cutting width	60"
Deck overlap	6"
Overall width	182"
Transport width	100"
Maximum overall length	183"
Transport length	161"
Horsepower required	35 - 80 hp
Splitter gearbox horsepower	100 hp
Deck gearbox horsepower	75 hp
Blade tip speed	18,000 fpm
Drive type	gearbox over v-belt
Input driveline	Cat 4 CV (constant velocity)
Wing drivelines	Cat 3
Transport tires	(2) 20.5 X 8 - 10
Caster wheel bearings	tapered roller bearings
Caster wheels	(10) 18 x 9.5 - 8 pneumatic
Deck thickness	8 gauge
Wing deck lift cylinders	3.5" x 10", single acting
Center deck lift cylinders	3" x 8" single acting
Trailer frame construction	.25" wall tubing
Hitch adjustment	floating clevis, multi-position
Blade spindles bearings	greasable tapered roller
Blade dimensions	(9) .25" x 2.5"
Blade spindles	(9) cast-iron
Cutting height adjustment	spacer on caster
Belts	B-section, Kevlar®
Belt adjustment	spring loaded idler
Chain shielding	standard
