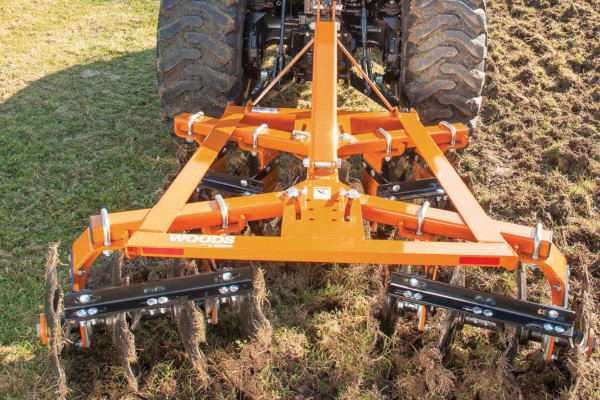

Woods DHS48

Double tap to zoom



  • 48-inch working width
  • Tractor HP range: Up to 35
  • Rugged, tapered frame and durable bearing hangers extend work life
  • Notched blades cut into the dirt
  • Independent disc blade gangs adjust easily
  • Lubed-for-life ball bearings ensure long-lasting performance
  • Quick-hitch compatible
  • Optional mud scrapers improve efficiency and productivity


Tractor Engine HP up to 35 hp
Tractor hitch Cat 1, Lim. Cat 1, Cat 0 optional
Working width 48"
Average Weight (depending upon blade type) 390 lbs
Average Weight per Blade 33 lbs
Disc Type notched
Disc Diameter 16"
Disc quantity 12
Disc spacing 7.5" front & rear
Frame Construction 3" x 3" tube and angle
Gang Axle Diameter 1" square
Angle Adjustments 0° to 21°
Bearing Type self-aligning (lubed for life)
Quick-hitch compatible yes
Duty Class Standard-duty
