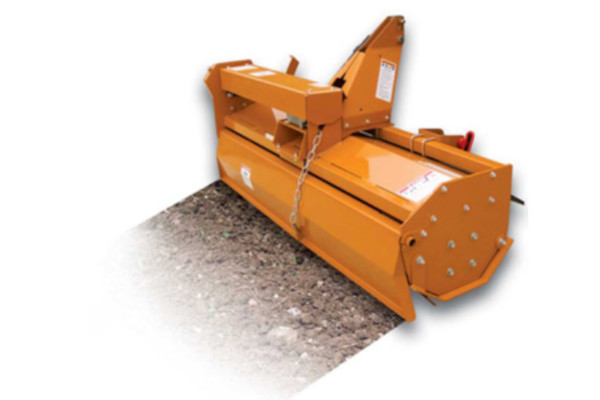

Woods TC/TCR60

Double tap to zoom



  • 60-inch tilling width
  • Tractor HP range: 20-45 hp
  • Three-point hitch: Cat 1
  • Available as either forward or reverse rotation
  • Standard slip clutch driveline protection
  • Sturdy rear tailgate evenly distributes dirt, leaving a smooth, flat seed bed
  • Strong, cast-iron gearbox withstands rugged use
  • Specifically designed for compact tractors


Tractor hitch Cat 1
Tractor Engine HP 20 - 45 hp
Working width 60"
Max. tilling depth 7.5"
Weight 597 / 604 lbs
Drive type #80 chain
Num. Tines/ Num. Flanges 42 / 7
Tines per flange 6 c-type
Rotar shaft rpm 240 rpm
PTO driveline protection slip clutch or shear bolt
Tractor PTO speed - rpm 540 rpm
Gearbox housing heavy-duty cast iron
Gearbox drain plug yes
Convertible side shift (right) 15.5"
Quick hitch compatible yes
