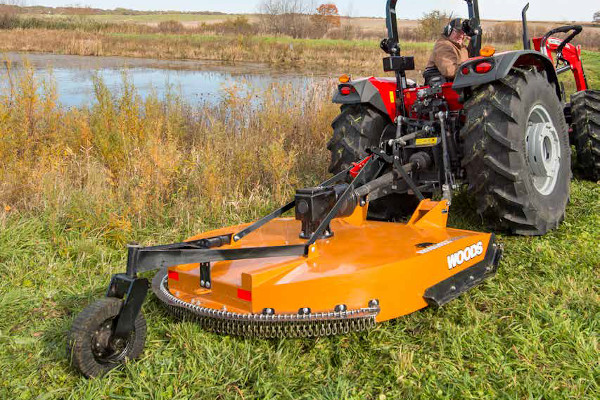

Woods BB60.60

Double tap to zoom



Features

  • 60-inch wide cutter for 40-150 hp tractors cuts brush up to 4 inches in diameter.
  • Quick-hitch compatibility and a drive lift hanger make it easy to attach.
  • Exclusive, greasable Quick-change pins and a large access window on top of the deck make it quick and easy to change blades.
  • Rugged bumper has Z-channel frame for added durability when backing over brush.
  • Adjustable, full-length skid shoes protect deck.
  • Large .5 x 4-inch blade increases suction and lifts material, resulting in excellent cut quality.
  • Smooth, sloped, clutter-free deck is easy to clean.

Specifications

Model BB60.60
PTO Horsepower 40-150 hp
Hitch category / type CAT 1 & 2 clevis
Cutting width 60"
Total Weight (lbs) 1,045
Cutting capacity diameter 4"
Cutting height 2" - 12"
Transport width 67.3"
Overall length 100"
Tractor PTO Speed (rpm) 540
Quick hitch compatible yes
Rear bumper Z-channel
Frame & Deck Support 3" x 3" tube
Deck Construction smooth top, sloped
Skid-shoes adjustable height full-length, replaceable
Deck thickness 10 ga (.135")
Side frame thickness 0.25"
Side frame depth 12.7"
Gearbox warranty 6-year limited
Gearbox HP 210 hp
Output shaft diameter 3"
Blade tip speed 13,570 fpm
Blade dimensions .50 x 4
Blade pin diameter 1.50"
Blade carrier diamond stump jumper, optional round
Driveline protection slip-clutch
Options check chains, round stump jumper
