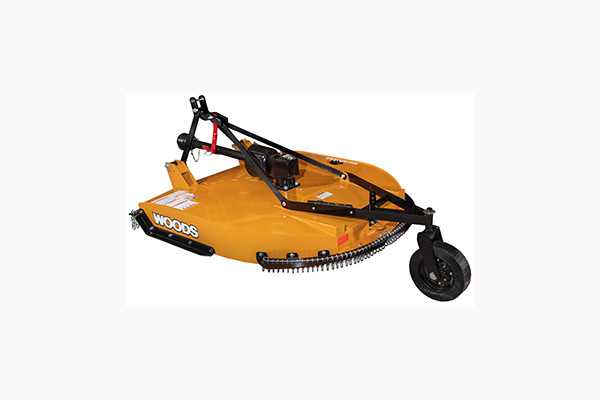

Woods BB84.40

Double tap to zoom



Features

  • 84-inch cutter for 35-90 hp tractors cuts brush up to 2 inches in diameter
  • Quick-hitch compatibility and a drive lift hanger make it easy to attach.
  • Exclusive, greasable Quick-change pins and a large access window on top of the deck make it quick and easy to change blades.
  • Rugged bumper has Z-channel frame and is twice as thick as competitive models, for added durability when backing over brush.
  • Large .5 x 4-inch blade increases suction and lifts material, resulting in excellent cut quality.
  • Smooth, sloped, clutter-free deck is easy to clean.
  • Tailwheel is A-frame, 3-point mounted with laminated 5-inch by 16-inch tire.
  • Options: Dual tailwheel, check chain for adjusting mowing height.
  • Choose rubber or chain shielding for the front, steel band or chain for rear.

Specifications

PTO Horsepower 35-90 hp
Hitch category / type CAT 1 & 2 clevis
Cutting width 84"
Total Weight (lbs) 1,041
Cutting capacity diameter 2"
Cutting height 1"-9"
Transport width 91 "
Overall length 124"
Tractor PTO Speed (rpm) 540
Quick hitch compatible yes
Rear bumper Z-channel
Frame & Deck Support 3" x 3" tube
Deck Construction smooth top, sloped
Skid-shoes full-length, replaceable
Deck thickness 11 ga (.120")
Side frame thickness 10 ga (.135")
Side frame depth 11.6"
Gearbox warranty 6-year limited
Gearbox HP 90
Output shaft diameter 1.57"
Blade tip speed 15,086 fpm
Blade dimensions .50 x 4
Blade pin diameter 1.50"
Blade carrier oval stump jumper
Drive-line protection slip-clutch
