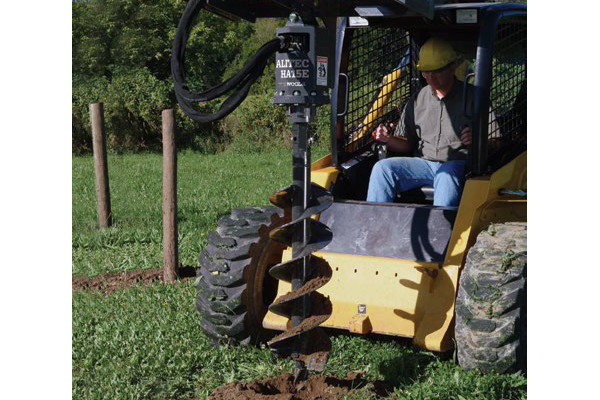

Woods HA35E

Double tap to zoom

20-foot maximum digging depth
Auger diameter range: 6-36 inches
Hydraulic flow requirement: 35-45 gpm
Designed with a planetary drive system for durability and use in hard soils
Dual-angle teeth offer 40 or 50-degree attack angle and are secured with a lug and bolt attachment
Standard, Hardface and Carbide tooth options based on soil type

Working width	20' (6.1 m)
Auger diameter range	6 - 36" (152.4 - 914.4 mm)
Hydraulic flow requirement	35 - 45 gpm (132-170 lpm)
Hydraulic pressure requirement	1,500 - 5,000 psi (103-345 bar)
Auger speed at 20 gpm (76 lpm)	-
Auger speed at 25 gpm (95 lpm)	-
Auger speed at 30 gpm (114 lpm)	-
Auger speed at 35 gpm (132 lpm)	87 rpm
Auger speed at 40 gpm (151 lpm)	99 rpm
Auger speed at 45 gpm (170 lpm)	111 rpm
Approximate weight with 12" auger	599 lbs (272 kg)
Application	heavy-duty construction grade rugged conditions
