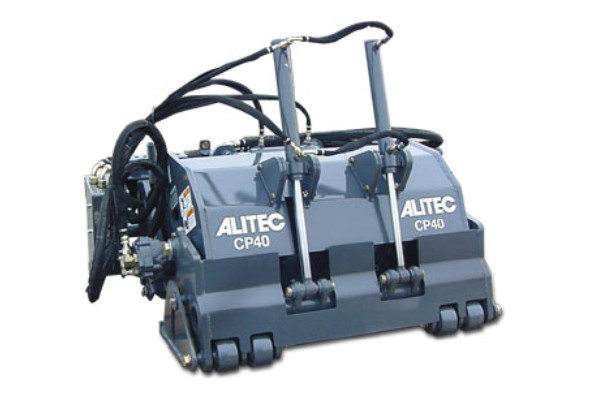

Woods CP40

Double tap to zoom



  • 40-inch cutting width
  • Cutting depth range: 0-8 inches
  • Manual controls attach to any skid steer
  • Top pivot design to self-level drum and chassis for higher down force and smoother cuts
  • Optional water kit for increased longevity
  • Optional step drum and stripe removal drum for added versatility


Hydraulic flow classification high-flow
Working width 40" (1,016.0 mm)
Depth of cut 0-8" (203.2 mm)
Number of teeth 94
Side shift (right) 0-22" (0-558.8 mm)
Tilt +/- 10°
Hydraulic flow requirement 33 - 47 gpm (125 - 178 lpm)
Hydraulic pressure requirement 3,000 - 5,000 psi (207-345 bar)
Operating weight 3,200 lbs (1,455 kg)
Depth control mechanism hydraulic
Tilt control mechanism hydraulic
Side shift mechanism hydraulic
Hydraulic function activation means manual or electric
