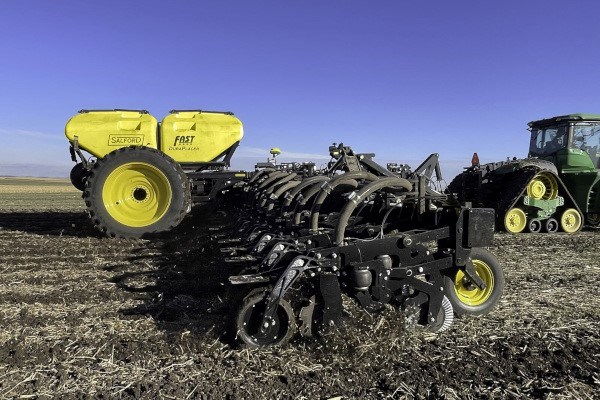

FAST DuraPlacer Dry

OVERVIEW

• Can be used to make strips in the Fall or Spring or freshen Fall-made strips while combining efficient nutrient application
• Capable of application speeds of 7-10 mph with minimum 325 hp tractor
• Available as either a 60′ or 40′ toolbar – 24 row or 16 row on 30″ spacing
• Available with multiple dry delivery systems
  • Salford ST-12 system
    • 12 ton total capacity - dual bin
    • Raven RCM rate controller
    • Raven RCM integrated scales for each bin
    • Up to 4 section for section control
  • Montag Options
    • 9 ton Gen 1 single bin - poly tank
    • 13 ton single bin - stainless steel
    • 13 ton dual bin - stainless steel
    • Standard with Montag ISO rate controller, ISO scale, dual bin ISO scales on dual bin units, 1, 2, or 4 sections for section control
• Narrow transport width of 16’5″ (with Yetter Strip Freshener CC). Transport width of 17'6" with Dawn Pluribus
• Unmatched toolbar flex and adjustable hydraulic down pressure at each flex point to follow ground contours
• Raven RCM or Deere Greenstar rate controllers offered as factory installed options – compatible with mapping, section control, variable rate

STANDARD TOOLBAR - Yetter Strip Freshener CC's or Yetter Nutrient Pro

• Four independent flex hinges across the toolbar and adjustable hydraulic down pressure at each flex point to ensure toolbar follows ground contours extremely well
  • Main Wings have 6 degrees up flex and 13 degrees down flex
  • Flip Wings have 9 degrees up and 8 degrees down
• Fold functions run through one hydraulic block/one remote on tractor
• Narrow Transport width of 16’5″ fully assembled
• Hydraulic WingKick standard to tilt outer wings up when toolbar is raised to increase ground clearance
• Adjustable wing orifices to ensure toolbar raises and lowers evenly in the field
• Four adjustable gauge wheels on 60′ toolbar, Two on 40′ toolbar
• Wide Stance Parallel Linkage to give stability to toolbar both in field position and while raised

LIFT ASSIST (LA) TOOLBAR - Dawn Pluribus

• A lift assist wheel is mounted at the end of each main wing which supports the toolbar while it is raised and while it folds/unfolds. The lift assist wheels caster 360 degrees to prevent sliding/scrubbing.
• Three even sections of toolbar flex – a 60’ toolbar has 8 rows on each section along with adjustable hydraulic downforce on the wings of both a 40’ or 60’ toolbar to ensure consistent depth
• The reinforced 40’ or 60’ toolbar design can be equipped with Dawn Pluribus row units to flow tough residue conditions in the Fall or Spring. The Dawn Pluribus row units can be equipped with pneumatic or hydraulic downforce and can be converted between coulters or a mole knife.
• DuraPlacer LA moves the toolbar up/down through a rockshaft style of design on the trailer frame to properly support the heavier row units.
• Adjustable wing orifices to ensure toolbar raises and lowers evenly in the field
• Narrow Transport Width of 17'6"

TRAILER

• Singles, Duals, or CAMSO Tracks all available
  • 480/80R50 Singles or Duals
  • 580/80R42 Singles
  • 380/90R46 Duals
  • CAMSO 18" or 15" wide TTS Tracks
