H&S CH3130 30-Ton
CH3130 30-Ton
3100 Series Chassis
Overview:

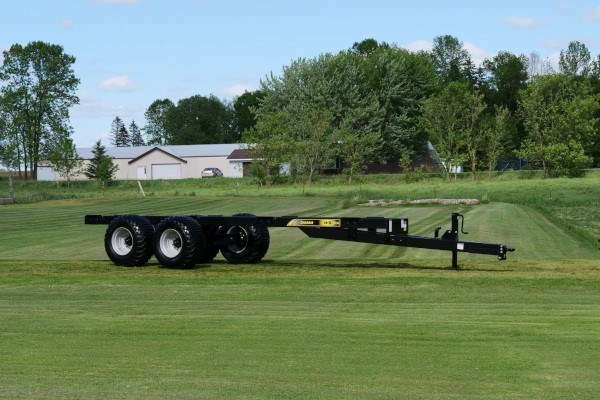

CH3130 30-Ton Oscillating Tandem Axle Chassis Heavy Gusseted Frame w/A-Frame Style Tongue 3.5" Spindles 10-bolt/15,000# Hubs Bullnose Hitch
Features
- Accommodates 27’ – 30’ total length forage boxes (including the unit if applicable).
- 34” wide heavy gusseted frame for superior strength.
- Oscillating tandem axles for flexibility.
- 60,000# capacity
- Jack
Options
- 4-Wheel Electrically Activated Brake System with Cab Control
- 8-Point Scale System with Monitor
Specifications
| MODEL | CH3130 |
| Dimensions | |
| Overall Length | 34' 11-1/4" |
| Hitch Choices | |
| Hitch | Bullnose |
| Tires | |
| Tire/Rim Options | 700/50x22.5 16 PLY Tires w/Rims |
| Tread Width | 90″ |
| Hubs & Spindles | |
| Spindles | 3.5″ |
| Hub | 10 BOLT - 15,000# |
