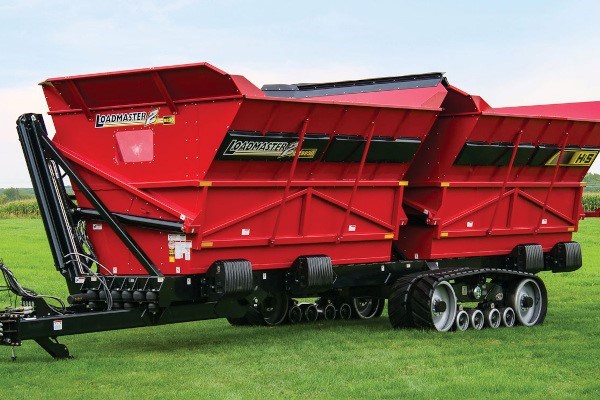

H&S HDB9230 30' Loadmaster 2X

New Equipment / All Brands / H&S / Hi-Dump Box / HDB9230 30' Loadmaster 2X

Rubber tongue suspension system.
Combination 10- and 12-gauge steel tub construction.
Heavy gusseted and reinforced box style frame.
Each box is capable of lifting and dumping approximately 30,000 lbs. of product for a total of 60,000 lbs.
The variable dumping height gives you more versatility at harvest time.
The ENTIRE dumping cycle should take approximately two minutes depending on hydraulic supply output.
The master/slave hydraulic system automatically rephases at the end of each cylinder stroke and has the flexibility to top off a truckload with a partial dump – not restricted to a full dump cycle.
Right hand dump has a 47-degree dumping angle with a dump height of over 15′.
(1) 27” x 16” sight window and (2) tub access panels in each box.
LED highway lighting.
Adjustable height single clevis swivel hitch.
Camso track system.
Hydraulic jack

Options

MODEL	HDB9230
Capacity
Cubic Ft. Capacity Struck Level w/o Ext.	(2) @ 863 cu. ft. each
Cubic Ft. Capacity Struck Level w/ Ext.	(2) @ 1,129 cu. ft. each
Dimensions
Overall Length	568" (47' 4")
Overall Width	163" (13' 7")
Overall Height	158" (13' 2")
Loading Height	134" (11' 2")
Shipping Height	134" (11' 2")
Maximum Ground Clearance	N/A
Inside Length of Box/Boxes	180" (15')
Inside Width of Box/Boxes - Bottom/Top	65"/136" (5' 5"/11' 4")
Depth of Box/Boxes	89" (7' 5")
Shipping Weight w/ Tires	48,177 lbs.
Overall Length Min./Max w/ Pole Adjustment	568" (47' 4")
Shipping Width (top slide to hub cap)	N/A
Cylinders
Front Lift Cylinder (size/length on each box)	5.5" x 72"
Rear Lift Cylinder (size/length on each box)	4.75" x 72"
Dump Cylinders (size/length on each box)	5" x 71.25"
Unloading Dimensions
Maximum Dump Lip Clearance	31" (2' 7")
Minimum Dump Height	116" (9' 8")
Maximum Dump Height	184" (15' 4")
Tread Width
Tread Width	163" (13' 7")
Standard
Jack	Hydraulic
Spindle Size	N/A
Tires	N/A
Hitch	Cat 4 or Cat 5 Bullnose Hitch

HDB9230 30' Loadmaster 2X
