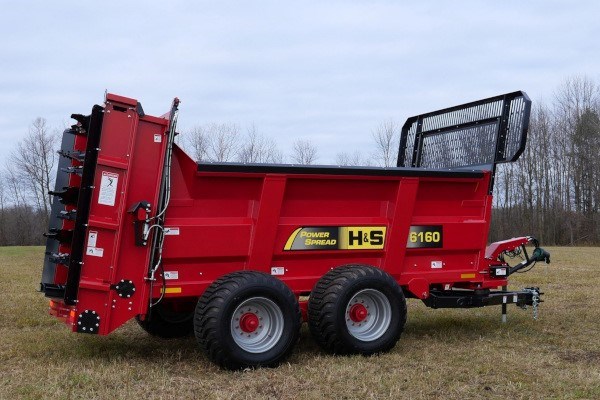

H&S PS6160 PowerSpread 509 Cu. Ft. Heaped

New Equipment / All Brands / H&S / Manure Spreaders / Power Spread / PS6160 PowerSpread 509 Cu. Ft. Heaped

509 cu ft heaped capacity per ASAE S324.2
A center drive shaft with a torque limiting clutch provides power and protection to the bottom driven monobloc gearbox
Dual hydraulic cylinder guillotine/metering style end gate
Vertical beaters feature reverse flighting; this patented feature allows for an even spread pattern of material
1/2” material is used for the flighting
5/8″ Grade 80 Apron Chain
Single bolt easy adjust main apron chain
1.5” x 2.5” x ¼” apron slats
Beater blades are replaceable, and the beater assembly is removable for stockpiling manure
Constant velocity PTO
Heavy hydraulic hose couplers
Heavy built frame
Poly side load bump rails
LED highway lighting

MODEL	PS6160
Capacity
Capacity Heaped Bushel Per S324.2	409.07
Capacity Cu. Ft. Struck Level Per ASAE S324.2	404
Capacity Cu. Ft. Heaped Per ASAE S324.2	509.07
Capacity Heaped Bushel Per S324.1	N/A
Height
Side Loading Height	89.5" (227.33 cm)
Vertical Beater Height	118.38" (300.7 cm)
Dimensions
Inside Width	73″ (185.4 cm)
Inside Length	177″ (4.5 m)
Inside Depth	52.3" (132.84 cm)
Overall Width w/Tires	139" (353.06 cm)
Overall Length	297″ (7.5 m)
Construction
Standard Number of Beaters	2
Vertical Beater Diameter	34″ (86.4 cm)
Replaceable Beater Paddles	Yes
Removeable Beater Assembly	Yes
Apron Chain Size	5/8″ Grade 80
Hub	12,000 lbs.
Spindle Size	3″ (7.6 cm)
Poly Bump Rails	Standard
PTO Choices	Choice of 1 ⅜″ or 1 ¾″ 1,000 RPM Constant Velocity
Standard
Jack	Crank
Weight
Weight w/Tires	11,539 lbs.
