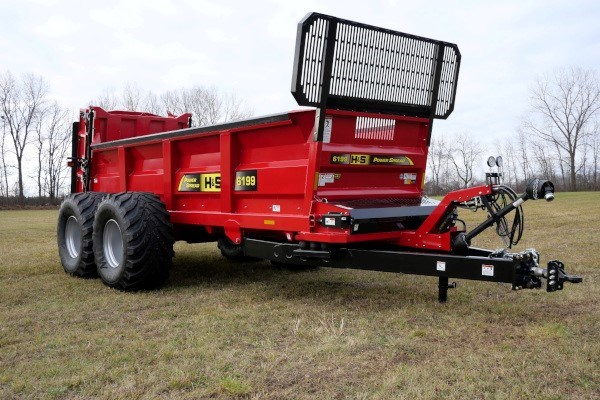

H&S PS6199 PowerSpread 959 Cu. Ft. Heaped

New Equipment / All Brands / H&S / Manure Spreaders / Power Spread / PS6199 PowerSpread 959 Cu. Ft. Heaped

793 cu ft heaped capacity per ASAE S324.2
A constant velocity tractor PTO and a center drive shaft with a torque limiting clutch provides power and protection to the bottom driven monobloc gearbox.
Bottom drive monobloc gearbox with 3-1/8″ output shafts vs. 2-1/2″ on the competition
Dual hydraulic cylinder guillotine/metering style endgate
3/4″ thick vertical beaters w/ replaceable beater blades vs. 1/2″ on some competitors.
Vertical beaters feature reverse flighting on the top 20+″ of the beater flighting. This patented feature allows for an even spread pattern of material.
The hydraulically driven apron features heavy-duty dual drive apron gearboxes.
3/4″ marine grade 80 log chain vs. competitor’s 5/8″
Heavy 2″ x 4″ x 1/4″ tubular apron slats
Single-bolt, easy-adjust main apron chain
Rubber tongue suspension is standard equipment, not an option like some of the competition.
Heavy-duty rectangular tubing is used for the pole to ensure strength and long life.
Removal of the beater assembly is done by simply removing the mounting bolts and disconnecting the PTO gearbox driveshaft.
Poly side load bump rails
LED lighting

MODEL	PS6199
Capacity Heaped Bushel Per S324.2	770
Side Loading Height	100" (254 cm)
Vertical Beater Height	137" (347.98 cm)
Height - Top of Hyd. Endgate	132" (335.28 cm)
Height - Top of Screen	143" (363.22 cm)
Inside Length	284" (7.21 m)
Overall Width w/Tires	149" (378.46 cm)
Overall Length	441" (11.2 m)
Spread Pattern - Approximate	25' - 40' (dependent on the weight of material)
Hitch Empty Weight - Approximate	758 lbs.
Weight w/Tires	25,296 lbs.
Capacity Cu. Ft. Struck Level Per ASAE S324.2	696
Capacity Cu. Ft. Heaped Per ASAE S324.2	959
Capacity Heaped Bushel Per S324.1	770
Tire Size	Choice
Dimensions
Inside Width	78.75″ (200 cm)
Inside Depth	52.5″ (133.4 cm)
Inside Width - Top of Flare	96″ (243.8 cm)
Construction
Standard Number of Beaters	2
Vertical Beater Diameter	39″ (99 cm)
Replaceable Beater Paddles	Yes
Removeable Beater Assembly	Yes
Apron Chain Size	3/4″ Grade 80
Hub	25,000 lbs. Rating Ea.
Spindle Size	4.5″ (11.43 cm)
Hydraulic Endgate	Hydraulic Guillotine/Metering Style
Poly Bump Rails	Standard
PTO Choices	Choice of 1 ⅜″ or 1 ¾″ 1,000 RPM Constant Velocity
Cylinders on Endgate	2
Hydraulic
Hydraulic Requirements	3,000 PSI & 30 GPM
Standard
Jack	Choice of Crank or Hydraulic

PS6199 PowerSpread 959 Cu. Ft. Heaped
