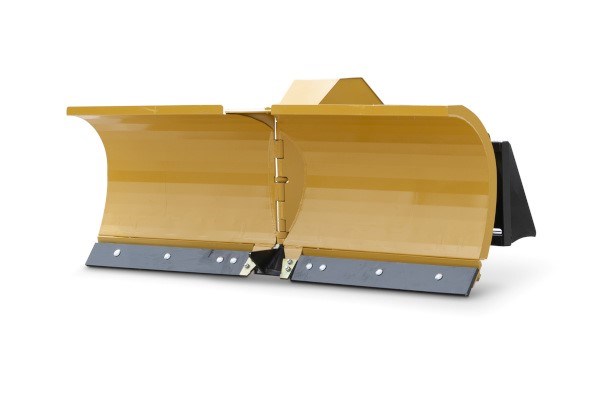

HLA Snow SB3600V84



Features

Features

  • 2 Year Warranty
    Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.
  • Replaceable, Reversible Steel Cutting Edge
    Our cutting edges are designed to be easily replaceable.
    Note: Replace endcaps along with cutting edges to prevent streaming.
    Currently not available on wings. (non Edge Flex only)
  • Spring Trip Cutting Edge
    Allows cutting edge to trip back if struck by hidden object limiting damage.
  • 35° Angle with Cross Over Relief Valve Protection
    Allows the blade to be rotated 35° in either direction, while the cross over relief valve protects from structural damage to either the machine or property.
  • Lateral Float
    Allows blade to follow ground contours for better clearing performance.
  • Single Electric Selector Valve
    Single Electric Selector Valve. Allows the control of each side of the Six-Way blade to be operated independently. 12V or 24V coils available. Includes in cab mount electro-hydraulic harness kit.
  • 5/8" AR400 Cutting Edge
    Features tough AR600 steel, measuring at 5/8" thick for a durable cutting edge to last even longer.
  • AR400 Skid Shoes
    Includes abrasion and wear-resistant AR400 skid shoes.
  • Quick Attach Frame Kits
    Quick attach frame kits available for most makes. Call dealer for details.



Options

  • Carbide Cutting Edges
    Carbide edges are designed for heavy commercial use, this non reversible cutting edge is suited for heavy duty clearing on concrete or asphalt. NOTE: Colour added to image to highlight carbide.
  • Curb Runner
    Protects cutting edge from potential wear from rubbing against curbs etc.
  • Snowblade Marker
    Add this to your blade for better visibility and blade position awareness.

Specifications

Part#SB3600V84
Approx. Weight (LBS.)805
Clearing Width Straight84"
Clearing Width Veed76"
Clearing Width Scooped63"
Road Clearance Angled73"
Mould-Board Height30"
Max Operating Weight (LBS.)10,000
