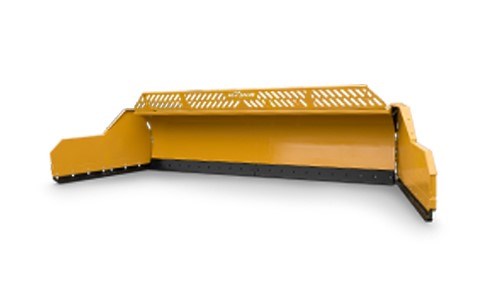

HLA Snow SB5206W1224
SB5206W1224
5206W Series
Overview:
Open from box blade to straight blade and get that extra clearing width on the fly. But it doesn't stop there: The endplates are hydraulically-controlled and equipped with industry-proven rotary actuators, giving limitless control within the massive 180° rotation. This means you can use your blade on an angle with one end open and the other parallel to the direction you are driving. Get closer to buildings and parking stones without risking damage. Then rotate the endplates into a reverse box blade and drag the snow away for full clearing in the tightest of spaces.
Share This Product:
Features
- 2 Year Warranty
- 6' Wings
- Removeable Upper Wing Tip
- 180° Rotation
- Crossover Relief Valve
- Floating End Plate Edge
- Lateral Float
- Nitrate Rods on Angle Cylinders
- Replaceable, Reversible Cutting Edge
- Rotary Actuators - PATENTED
- Skid Shoes
- Spring Trip Cutting Edge
- Tire Protection System - PATENTED
Options
- Rubber Cutting Edge
- Spill Guard
- Carbide Cutting Edges
- Curb Runner
- High Tensile Long Wear Skid Shoes
- Floating Blade Hinge
- Snowblade Marker
Specifications
| Part# | SB5206W1224 |
| Clearing Width Closed (in.) | 144 |
| Clearing Width Open (in.) | 288 |
| Overall Road Width (Angled) (in.) | 133 |
| Snow Clearing Width (Angled) (in.) | 235 |
| Mouldboard Height (in.) | 42 |
| Weight (lbs.) | 4,530 |
| Max Operating Weight (lbs.) | 40,000 |
