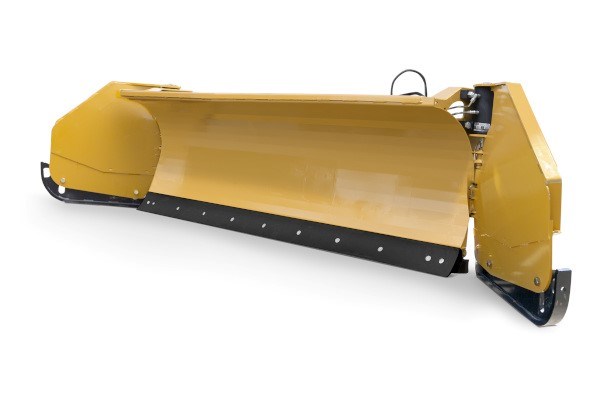

HLA Snow SP3530W1015



Features

Features

  • 2 Year Warranty
    Designed for harsh conditions, HLA Snow backs its 3000, 4000, 5000, and 6000 series blades with a 2 Year Commercial Warranty.
  • Lateral Float
    Allows blade to follow ground contours for better clearing performance.
  • Replaceable, Reversible Cutting Edge
    Our cutting edges are designed to be easily replaceable and are reversible to give you twice the life.
    Note: Replace endcaps along with cutting edges to prevent streaming.
    Currently not available on wings. (non Edge Flex only)
  • Adjustable Skid Shoes
    Allows you to set cutting depth for optimum performance and prolonged cutting edge life.
  • Rotary Actuators - PATENTED
    These rugged units come from the construction industry and deliver up to 21,000 in. lbs of torque at 3000 PSI to hold the wings in place.
  • Spring Trip Cutting Edge
    Allows cutting edge to trip back if struck by hidden object limiting damage.
  • Single Selector Valve
    Allows the control of each wing to be operated independently. 12V or 24V coils available. Includes in cab mount electro-hydraulic harness kit.



Options

  • Carbide Cutting Edges
    Carbide edges are designed for heavy commercial use, this non reversible cutting edge is suited for heavy duty clearing on concrete or asphalt. NOTE: Colour added to image to highlight carbide.
  • Rubber Cutting Edge
    The optional rubber cutting edge is available for select models.
  • Snowblade Marker
    Add this to your blade for better visibility and blade position awareness.
  • Edge Flex Models
    Available in Edge Flex. Segmented cutting edges available with standard hardox or heavy duty carbide.

Specifications

Part #SP3530W1015
Approx. Weight (LBS.)1,690
Length (Closed/ Open)120" / 180"
Mouldboard Height30"
Max Operating Weight (LBS.)13,000
