4WS18‑HD‑52
4-Wheel Steer Series
Overview:

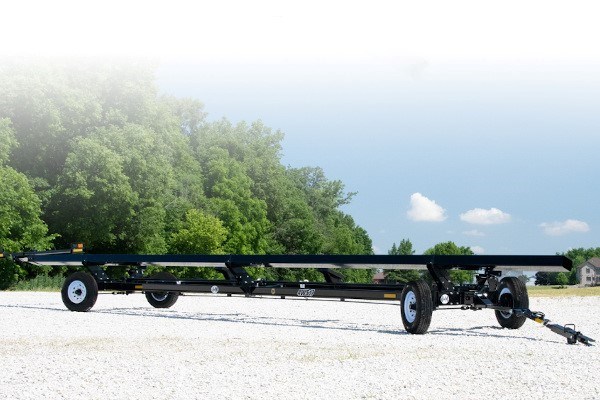

Wheel Steer Series transports are built low for more clearance while loading and unloading your head. Heavy-duty components allow for a 16,500 lbs net carrying capacity. Choose from 32, 38, 42, 48 or 52 foot long upper bar options to suit your farming needs. The 4-Wheel Steer Series header transports are the perfect choice when you need to turn sharper, while still carrying large, heavy heads to and from the field.
Features
Arched Lower Beam
An arched lower beam with trussed understructure provides maximum support for large, heavy heads.
Additional Center Support
A support in the center of the transport improves alignment of front and rear axles and strengthens the upper bar for greater load capacity.
4WS18
- 17' Turning Radius
- 82" Center Tread Width
- 8 Hole Hub
- 48' Steel Upper Bar
- 30' Center to Center Axle Spacing
- Quick Hitch Tongue with Spring Assist
- Adjustable Mounts
- Patented Tie-Down Brackets with Hook and Strap Assembly
- Light Package
- 16"×6" Wheels and 235/85R16E Tires
Specifications
| SPECIFICATIONS | |
| MODEL | 4WS18-HD-52 |
| Weight | 4,810 lbs |
| Capacity (Net) | 16,300 lbs |
| Spindle Size | 2" Diameter |
| Wheel Size | 17½"×6¾"-8 Bolt |
| Tire Size | 215/75R17.5H |
| Steel Upper Bar | 4"×8" |
| Upper Bar Length | 52' |
| Box Channel Axle Frame | 8" |
