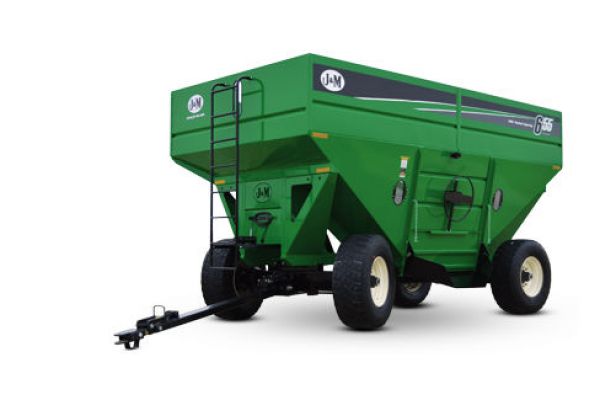

J&M Manufacturing 655 Gravity Wagon

655 Gravity Wagon
55 Series
Overview:
J&M’s 55 Series gravity wagons are available in 450 to 760 bushel capacities. The heavy-duty construction, steep slopes and other advanced features allow you to get the job done efficiently and with confidence.
Features
Sleeved Spindles and Oil Bath Hubs
- Sleeved Spindles
For maximum strength, spindles are inserted into heat-shrunk sleeves for welding.
- Oil Bath Hubs
Synthetic oil provides superior bearing protection and excellent lubricant flow, even in the coldest weather. - Tie-Rods
Tie-Rods with clevis ends and replaceable bronze bushings make for easy maintenance.
Smooth and Quiet Ride
Rubber cushions mounted between the box and running gear provide a smoother and quieter ride.
60" Door with Oversized Wheel
55 Series gravity wagons feature a 60" door with an oversized door wheel for easy access from either side of the wagon. The heavy-duty gear reduction door opener allows you to open the large door with ease.
More Features
- Spring Assist Tongue
- Rocking Bolster Assembly
- Adjustable Tongue
- LED Lights
- Large Inspection Windows
- Side Discharge Chute
- Ladder
Specifications
Models | 655 |
Tank Capacity | 660 Bushels |
Door Width | 60" |
Adjustable Chute Height | 14" to 19" |
Hopper Steel | 12 & 9 Gauge |
Understructure Runners | 3"x6" |
Taillights | Standard |
Front Ladder | Standard |
Center Dump Deflector | Optional |
Running Gear Capacity | 24 Ton - HD |
Spindles Diameter | 3 3/8" |
Wheels | 22.5x13 - 10 Bolt |
Tires | 16.5-22.5 or 18-22.5 |
Optional Hydraulic Brakes | 4-Wheel Drum |
Weight | 6,800 lbs. |
