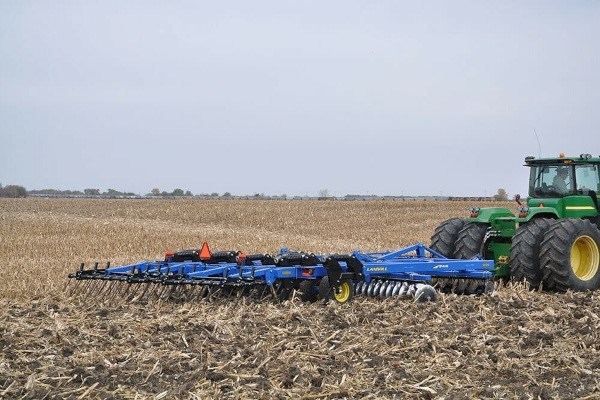

Landoll 2411AFG-9-24
Features
- Laser Cut, Robotically Welded Frame
- 5 1/2” Lift Axles with Maintenance-Free Lift System
- Walking Tandems on All Sizes
- Slip-In Spindles
- 340/60R x 18, 400/60R x 18 Tires (Model Dependent)
- Self-Leveling Hitch with Manual Adjustment
- Cast Single Lip Hitch Cat. IV
- Single-Point Depth Control
- 24” or 26” Disc Blades Spaced at 10 1/2”
- 15 Degree Gang Angle Front and Rear
- Heavy-Duty Scrapers
- 1 3/4” Gang Bolt
- Trunnion Mount Bearings
- C-Cushion Bearing Mounts
- Overlapping/Staggered Offset Tandem Disc Gangs
- Staggered Shank Arrangement
- Auto-Reset Shanks with 3,600 lb. Point Load
- Variety of Points Available
- Adjustment/Maintenance Wrenches
- Blue Powder Coat Paint
- Safety Warning Lights
Specifications
| Product Attributes | 2411AFG-9-24 |
| Approximate Weight | 25,440 lbs. (11,539 kg) |
| Working Width | 18 ft. 0 in. (5.5 m) |
| Transport Width | 14 ft. 6 in. (4.6 m) |
| Transport Height (Excluding Rear Attachment) |
13 ft. 6 in. (4.1 m) |
| Number of Disc Blades - Front | 24 |
| Number of Disc Blades - Rear | 24 |
| Blade Spacing - Front | 10.5 in. (267 mm) |
| Blade Spacing - Rear | 10.5 in. (267 mm) |
| Blade Sizes | 24 in. x 0.25 in. (610 x 6.4 mm) Rollable 24 in. x 0.25 in. (610 x 6.4 mm) 26 in. x 0.25 in. (660 x 6.4 mm) 26 in. x 0.3125 in. (660 x 7.9 mm) |
| Blade Concavity | 3 in. (76.2 mm) |
| Blade Scrapers | 4.5 in. (114 mm) Adjustable |
| Blade Scraper Mount | Heavy-Duty 0.625 in. (15.9 mm) Spring Steel Arm |
| Gang Spools - Front | 5.5 in. (140 mm) Diameter |
| Gang Spools - Rear | 5.5 in. (140 mm) Diameter |
| Gang Angle - Front | 15 Degrees Non-Adjustable |
| Gang Angle - Rear | 15 Degrees Non-Adjustable |
| Gang Shaft | 1.75 in. (44.5 mm) Round |
| Number of Gang Bearings - Front | 8 |
| Number of Gang Bearings - Rear | 6 |
| Gang Bearing Type | C-Cushion Trunnion Mount, Greaseable Triple Lip Seals |
| Gang Height Adjustability | 12 in. (304.8 mm) |
| Number of Shanks | 9 |
| Shank Spacing | 24 in. (610 mm) |
| Shank Depth (Maximum) | 14 in. (356 mm) |
| Point Load | 3,600 lbs. (1633 kg) |
| Trip Height | 14 in. (356 mm) |
| Shank Size | 1.25 in. x 4 in. (31.8 x 102 mm) |
| Shank Type | Auto-Reset Parabolic |
| Standard Point | 2.5 in. (63.5 mm) CADI Point |
| Standard Wear Guard | V-Shaped CADI Wear Guard |
| Transport Lift Axles | 5.5 in. (140 mm) with UHMW Maintenance Free Pivots |
| Transport Axle Type | Walking Tandems with Greaseable Pivots |
| Tire Size - Main Frame | (4) 400/60R x 18 |
| Wheel Hubs - Main Frame | 8-Bolt |
| Spindles - Main Frame | 4 in. (102 mm) Slip-In Spindles |
| Tire Size - Wing Frame | N/A |
| Wheel Hubs - Wing Frame | N/A |
| Spindles - Wing Frame | N/A |
| Hitch Type | Self-Leveling with Manual Adjustment |
| Hitch Category | Cast Single Lip Cat. IV with Ball |
| Machine Depth Control | Single Point, Front Mounted |
| Safety Warnings Lights and SMV Emblem | Standard |
| Safety Chain Kit | Standard |
| Adjustment Wrenches | Standard |
| Powder Coat Paint, Blue Sapphire | Standard |
| Cat. III Single Lip Hitch Clevis | Optional |
| Cat. V Single Lip Hitch Clevis | Optional |
| Shark Fin CADI Point | Optional |
| 7 in. Wing Point with Chrome Cap | Optional |
| 7 in. Wing Point with Cast Cap | Optional |
| 10 in. Wing Point with Chrome Cap | Optional |
| 10 in. Wing Point with Cast Cap | Optional |
| Spare Tire & Wheel Assembly | Optional |
| Rigid Shear Bolt Shank | Optional |
| Horsepower Requirements | 50 HP and up (27 kW) per Shank |
Specifications subject to change with or without notice.
