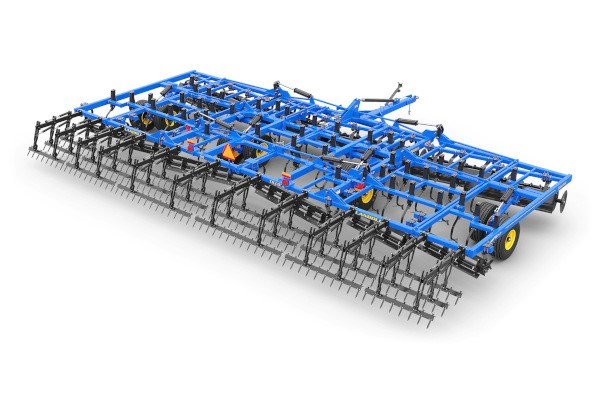

Landoll 877-10



Features

  • 20” Concave Disc Blades Spaced at 7 ½”
  • 10 Degree Gang Angle
  • Reversible Scrapers
  • C-Cushion Bearing Standards with 1 ½” Gang Bolt
  • Soil Deflector/Spray Shield on Disc Gangs
  • Spring Clamp Shanks with 170 lbs. of Point Load
  • 25 ½” Under Frame Clearance
  • 9” Shank Spacing
  • 10” Sweeps
  • Chopper Reel and Spike Leveling Attachment
  • 16” 5-Blade Reel Mounted on Trunnion Bearings and C-Cushion Bearing Standards
  • Chopper Mounted at 10 Degree Angle to Return Dirt from Front Gangs
  • 3-Bar Spike Drag with Adjustable Spring Down Pressure and Tooth Angle
  • Single Lip Cat. III or Cat. IV Hitch, Model Dependent
  • Walking Tandem Wheels, Heavy-Duty Hubs and Spindles
  • Single Point Depth Control
  • Edge Bent Shanks
  • Sapphire Blue Powder Coat Paint
  • tSafety Warning Lights

Specifications

Product Attributes877-10
Approximate Weight5,460 lbs. (2,477 kg)
Working Width10 ft. 6 in. (3.2 m)
Transport Width12 ft. 0. (3.7 m)
Transport HeightN/A
Type of FoldNon-Folding
Number of Shanks14
Shank TypeSpring Clamp, Edge Bent Shank
Shank Size0.5625 in. x 1.75 in. (14.3 x 44.5 mm)
Point Load170 lbs. (77 kg)
Shank Spacing9 in. (229 mm)
Under Frame Clearance25.5 in. (648 mm)
Sweeps10 in. (254 mm)
Number of Blades16
Soil Deflector/Spray ShieldMounted Behind Gangs
Blade Diameter20 in. (508 mm)
Blade Thickness0.197 in. (5.0 mm)
Blade ConcavityLow Concavity
Blade Spacing7.5 in. (191 mm)
Reversible Blade Scrapers4 in. x 0.25 in. (102 x 6.35 mm)
Gang ProtectionC-Cushion
Gang Angle10 Degree
Gang Shaft1.5 in. (38.1 mm)
Gang Bearings1.5 in. (38.1 mm) Flange Type Greaseable
Chopper Reel and 3-Bar Spike DragStandard
Chopper Reel Size16 in. (406 mm) Diameter
Chopper Reel Bars5-Bar, 0.281 x 4 in. (7.1 x 102 mm) Beveled
Chopper Reel BearingsTrunnion Bearings with C-Flex Protection
Chopper Reel AngleMounted at 10 Degree Angle
3-Bar Spike DragAdjustable Down Pressure
3-Bar Spike Drag AngleAdjustable
Spike Size0.75 in. x 11 in. (19.0 x 0279 mm)
Spike SpacingSpaced on 2.5 in. (63.5 mm) Centers
Frame ConstructionLaser Cut/Matchcut Components, Robotically Welded
Walking TandemsStandard in All Locations
Tire Size - Main Frame(4) 280/70R x 15 Radial
Wheel Hubs - Main Frame6-Bolt
Spindles - Main Frame2.25 in. (57.2 mm) Slip-In Spindles
Tire Size - Wing FrameN/A
Wheel Hubs - Wing FrameN/A
Spindles - Wing FrameN/A
Hitch CategoryCat. III Single Lip
Machine Depth ControlSingle Point Depth Control
Safety Warning Lights and SMV EmblemStandard
Safety Chain KitStandard
Powder Coat Paint, Blue SapphireStandard
10 in. Ultra Wing SweepsOptional
Cat. IV Single Lip Hitch ClevisOptional
Cat. V Single Lip Hitch ClevisN/A
Spare Tire and Wheel AssemblyOptional
Horsepower Requirements11 to 12 HP (8 to 9 kW) per Foot
