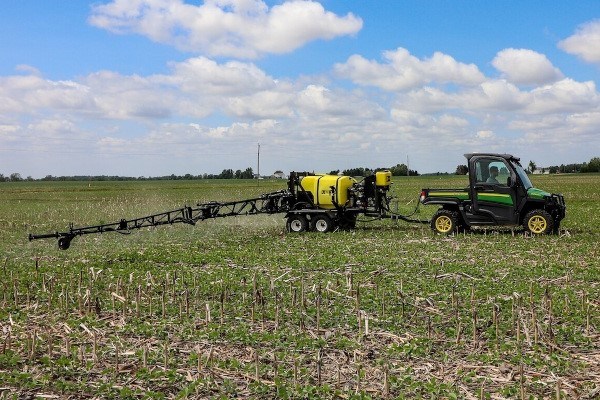

TopAir 200 Gallon

BOOM

• Self-leveling 30’, 45’ or 60’ manual front-fold boom widths available for meeting various grower preferences.
• Boom breakaway feature allows the boom to spring backward should it hit an obstruction and quickly return to operating position.
• Winch-controlled height adjustment on the boom from 12” to 30” locks securely into place.
• 3-section 30’/45’ boom and 3- or 6-section 60’ boom with electronic ball valves and singletip nozzles available on 15” or 20” spacing.
• Easy-to-see pressure gauge mounted at the front of the unit for handling a wide variety of spraying applications.
• In-line boom strainer virtually eliminates nozzle plugging for uniform spraying.
• Raven 440 rate controller on 30’, 45’ and 60’ 3-section booms or Raven 450 rate controller on 6-section 60’ boom.
• Booms are finished with a baked-on, powder-coat finish for corrosion resistance.

TANK & UNDERCARRIAGE

• 200-gallon tank capacity requires a minimum 600 cc ATV for optimum performance.
• 2” quick fill is located on the rear of the unit for easy access and ensures fast loading.
• The tank volume indicator is located on the front of the unit for easy viewing.
• 9-gallon clean water tank with spout and eye wash tube is also equipped with a storage container.
• Powered by a gas motor-driven centrifugal Ace 660 pump for easy and reliable operation.
• Tank agitation keeps the contents properly suspended for a uniform mixture of chemical.
• Undercarriage features tongue-mounted shock absorber for providing a smoother ride and uniform spraying over uneven terrain.
• Self-leveling tongue and 1 7/8” ball hitch for easy hookup and jack for easy storage.
• Tandem axles are infinitely adjustable from 60” to 90” to match row widths.
• 24x10.5x10 high-flotation tires can be moved fore and aft to ideally distribute weight.
• Standard transport lights for safer road travel.
• Undercarriage is finished with a baked-on, powder-coat finish for corrosion resistance.
