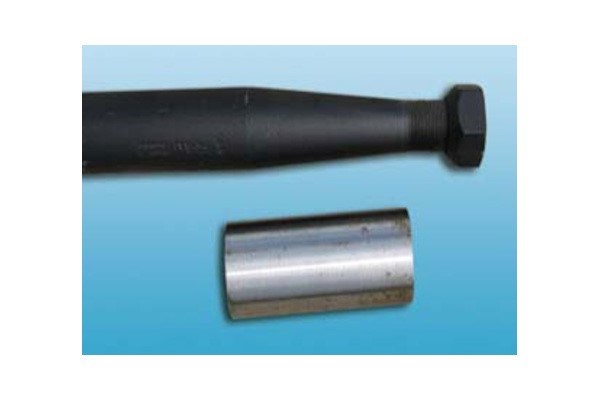

Replacement Forged Spears & Spear Kits
Features
Replacement Forged Spears & Spear Kits
Specifications
| Model | Description |
| 831290 | 1,800 lbs. Tapered forged Conus II replacement spear with nut. 49" long (44" useable length) 22 lbs. |
| 831273 | 2,200 lbs. Tapered forged Conus II replacement spear with nut. 49" long (44" useable length) 22 lbs. |
| 830928 | 2,200 lbs. Bolt-in (42mm dia.) replacement spear. 47" long (42" useable length) 19 lbs. |
| 830924 | 2,200 lbs. Bolt-in (42mm dia.) replacement spear. 31.5" long (26" useable length) 26 lbs. |
| 832217 | Replacement spear kit. Rated at 2,200 lbs. Kit includes bolt-in spear, sleeve and bolt. Spear is 47" long (42" useable). Weld in sleeve is 2.25" O.D., 26 lbs. |
| 832216 | Replacement short spear kit. Kit includes bolt-in spear, sleeve and bolt. Spear is 31.5" long (26" useable). Weld in sleeve is 2.25" O.D. |
| 832215 | Replacement spear kit with cast steel weld-on socket and bolt-in spear. Rated at 2,200 lbs. Spear is 47" long (42" useable), casting welds to 3" x 3" or larger square frame. 29 lbs. |
| 832214 | Replacement short spear kit with cast steel weld-on socket and bolt-in spear. Spear is 31.5" long (26" useable), casting welds to 3" x 3" or larger square frame. |
| 831180 | Replacement spear kit. Rated at 1,800 lbs. Kit includes spear, nut and sleeve. Spear is 49" long (44" useable). Weld in sleeve is 2" O.D., 23 lbs. |
| 831190 | Replacement spear kit. Rated at 2,200 lbs. Kit includes spear, nut and sleeve. Spear is 49" long (44" useable). Weld in sleeve is 2" O.D., 20 lbs. |
| 830925 | Bolt-on replacement spear kit. Rated at 2,200 lbs. Mounting plate is designed to be U-bolted to 3" x 3" square tubing frame. Includes mounting plate, U-bolts, bolt-in spear 47" long (42" useable) and bolt. |
