Worksaver HPD-22Q SHC
HPD-22Q SHC

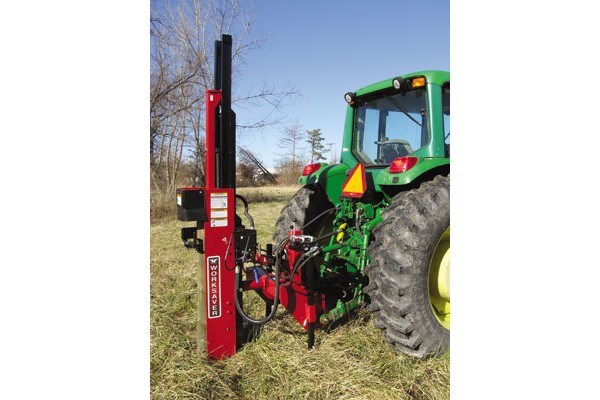

HPD-16/22Q/26Q SHC Hydraulic Adjust, 3-pt. Hydraulic Post Drivers
Overview:
Our HPD-22Q hydraulic post drivers for easier fence installation.
Features
Designed and engineered for those who have serious fencing to do. These center mounted units offer all the quality features of the basic HPD-16 & HPD-22Q plus effortless hydraulic driver alignment controlled by two 3” x 6” hydraulic cylinders. For increased driving force, the heavyduty HPD-26Q SHC delivers 110,000 lbs. of high-impact force for driving large posts in tough soil conditions. Big-foot stabilizer helps control tractor bounce on these larger units.
Specifications
| Model | HPD-22Q SHC |
| Max. Post Size | 8-3/4” x 10’ |
| Impact at Full Stroke | 80,000 lbs. |
| Impact at Half Stroke | 40,000 lbs. |
| Mount Type | 3-pt. Cat I/II |
| Tilt Adj. Front/Back | 17° each way |
| Tilt Adj. Side/Side | 20° each way |
| Manual Adjust | No |
| Hydraulic Adjust | Yes |
| Adj. Cylinders/Size | (2) 3” x 6” |
| Stabilizer Legs | Standard |
| Big Foot | Yes |
| Slide Blocks Material | UHMW* |
| Spring Post Holder | Standard |
| Min. Tractor Size | 30-35 hp |
| Rear Hitch Category | Cat. Ior II |
| Min. Hydraulic Req. | 6-8 GPM |
| QuickChange Rod Seal | Yes |
| Q-springs | Yes |
| Valve(s) | Sgl./Dbl. Spool |
| Hoses less couplers | Standard |
| Weight (lbs.) | 1035 |
| Product Number | 815330 |
