Worksaver 811650
811650

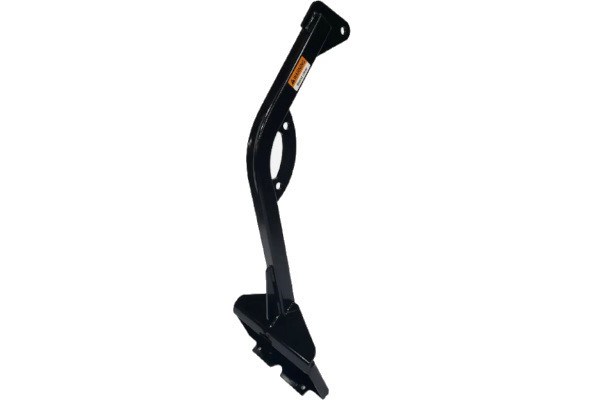

Mini Skid Steer Crane Boom
Features
Mini Skid Steer Crane Boom is designed for placing new trees, transporting cut trees or moving material on the jobsite. Boom’s overall length is 59.25 inches and features three lifting points for increased flexibility in loading and lifting. Rated capacity is 2,500 lbs.
Specifications
| Description | Details |
| Lifting Capacity at Farthest Attaching Point (lbs. /kg) | 2500 / 1134 |
| Lifting Capacity at Middle Attaching Point (lbs. / kg) | 2700 / 1224.72 |
| Lifting Capacity at Closest Attaching Point (lbs. / kg) | 2900 / 1315.44 |
| Boom Construction | 3" Square Steel Tubing |
| Mount Type | Universal Mini Skid Steer |
| Overall Boom Length (in/mm) | 59.25 / 1505 |
| Boom Reach Over Mount (in/mm) | 48 / 1219 |
| Weight (lbs. / kg) | 100 / 45.36 |
| Product No. | 811650 |
