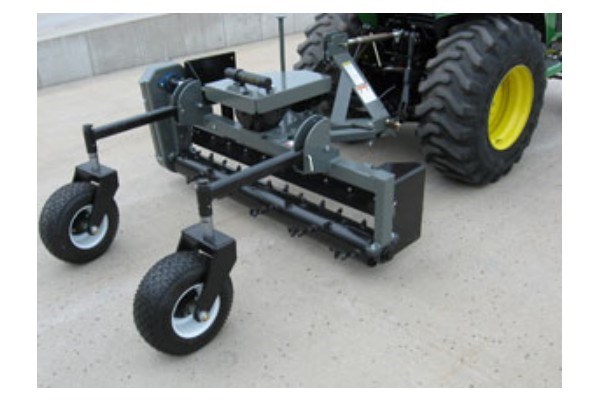

PTHD-640
40 Series Powered Landscape Rakes
Overview:
Providing ingenious solutions for your site prep needs, the 40-Series of 3-pt. mounted Power Rakes are matched to tractors of 35-75 HP.
Features
Standard features include PTO with slip clutch for sure power transfer, double #80 chain drive for long service life, rugged 4" x 4" x 1/4" frame, dual flip-up gauge wheel on 5-bolt hubs and heavy-duty adjustable material bar to control processed material flow.
Specifications
| Specifications - 40-Series for Tractors 35-75 HP | |
| Model | PTHD-640 |
| Mount Type | 3-pt Cat.II |
| Main Frame (in) | 4 x 4 x 1/4 |
| Overall Width (in/cm) | 80 / 203 |
| Working Width (in/cm) | 72 / 183 |
| Working Depth (in/cm) | 0-3.0 / 0-8 |
| Max. Angle | 20° L/R |
| Hydraulic Angle | Optional |
| Drive System | PTO |
| Rotor Drive | #80 Roller Chain |
| Chain Tensioner | Standard |
| Rotor Tooth | Carbide |
| Gauge Wheel | Dual |
| Flip-Up Side Shields | Standard |
| Material Control Bar | Adjustable |
| Weight (lbs/kg) | 1065 / 483 |
| Product No. | 360870 |
