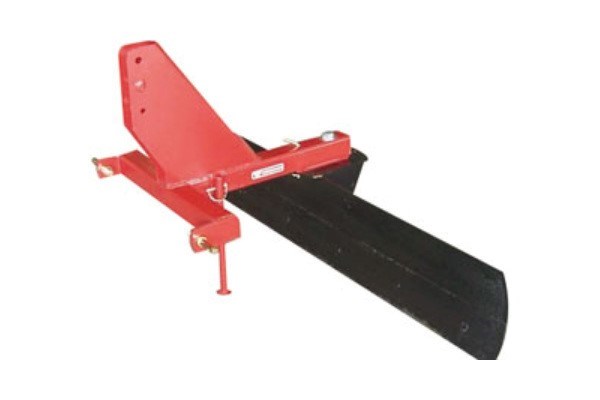

Worksaver RBHD-7
RBHD-7
Rear Blades RBHD Series
Overview:
Designed to fit Cat. I and Cat. I Quick Hitch. These heavy-duty models have the strength required to handle the tough jobs.
Features
Designed for Cat. I or Cat. I Quick Hitch these heavy-duty models have the strength required to handle the tough jobs. The main frame consist of an all welded mast and 4" x 4" square tubing. The RBHD-Series features mechanical offset and angle adjustment. Angle adjustment is done by simply removing a pin, angling the blade and reinstalling the pin. The RBHD-6-T and RBHD-7-T utilize a 3-position tilt assembly that is easy to use. All models have a reversible cutting edge and are supplied with a parking stand for convenient storage. Available options are skid shoes to assist in cutting height adjustment to reduce the chance of surface damage during snow removal. Optional end plates provide a boxed area for grading.
Specifications
| Specifications | |
| Model: | RBHD-7 |
| Item No.: | 346785 |
| Maximum HP: | 50 hp |
| Frame Size: | 4 in. x 4 in. |
| A-Frame | Welded Mast |
| 3-pt Hitch: | Cat. I |
| Moldboard Width: | 7 ft. |
| Moldboard Height: | 14 in. |
| Moldboard Thickness: | 1/4 in. |
| Cutting Edge (Reversible): | 6 in. |
| Angle/Pivot: | 360º |
| Angle Forward (Degrees): | 0, 15, 30 |
| Angle Reverse (Degrees): | 0, 15 |
| Offset: | 12-in. R/L |
| Tilt: | NA |
| Parking Stand: | Standard |
| Weight (lbs): | 300 |
| OPTIONAL ITEMS | |
| SK-8 Skid Shoes | 346745 |
| EP-40 End Plates: | 346765 |
