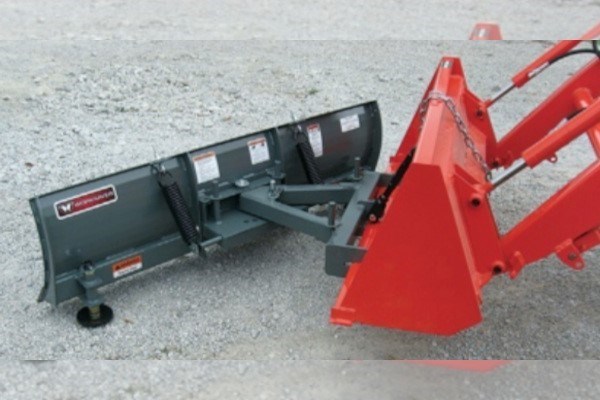

Worksaver SBC-2172

Ideal for residential or commercial snow removal. Use on driveways, parking lots, or other large areas.
Available in 5-ft. & 6-ft. models.
Two trip springs for controlled break over in snow.
Reinforced 21" high 10-gauge moldboards provide long service life.
3/8" x 6" cutting edge of 1044 steel.
Blade locks for light grading of loose dirt or gravel.
Step-through design allows for easy access to skid steer seat.
Quick hook up on skid steers or front loaders equipped with "Universal" mounting plate.
Blade angles right or left.
Adjustable skid shoes of AR steel are ½” thick and rotate for long life.
Select models integrate either the skid steer or John Deere 200/300/400 series mounting for easier hook up.
Two bucket clamp-on models for compact tractors.
SBFL models can be paired with optional brackets for most tractor loaders.

Description	SBC-2172
Overall width (in/cm)	72 / 183
Overall height (in/cm)	21 / 53
Moldboard Thickness	10-gauge
Cutting edge (in/mm) 3/8" x 6" / 9.525 x 152.4	Standard
Extension trip springs	2
Manual angle positions	5
Width @ Full angle	62 / 157
Tractor Loader Mount	Clamp-On
Skid Steer Mount	N/A
Adjustable Skid Shoes	Standard
Horse Power Rating	<35 HP
Weight (lb/kg)	335 / 152
Hydraulic Angle Kit	Optional
Skid Steer Angle Hydraulic Kit	NA
Crossover Rel. Valve	Optional
Optional Top Deflector	360223
Opt. Sight Indicator	360235
Product Number	360290

For Skid Steer and Tractors w/ Loader 25 -45 HP, Max. Clamp-on Models for Tractors up to 35 HP, Max.

Be Sure tractor / skid steer is properly counterbalanced.

*Optional Interfacing Quick Attach brackets available for most popular models.

SBC-2172
