Brillion CPPR2-7
CPPR2-7

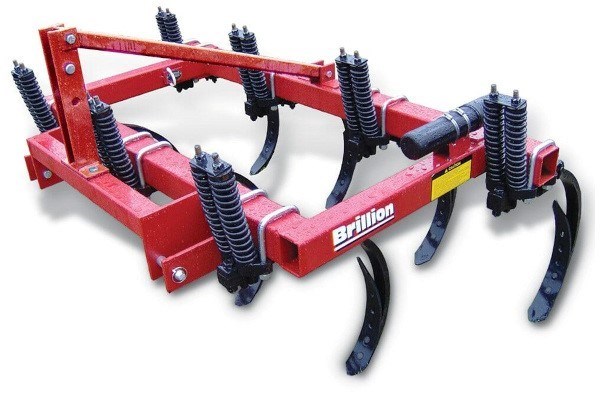

2-Bar Mounted Models
Overview:
With its 5 and 7 shank sizes, the 2-Bar Mounted Chisel Plow fits into smaller operations and niche markets around the country. The 2-Bar frame allows for handy maneuvering and easy pulling in the field. The 2-Bar Mounted models are available with a choice of rigid or dual nested spring resets; gauge wheels are offered as optional equipment.
Share This Product:
Features
- Three-Point Hitch - Cat. II Free Link
- Three-Point Hitch - Cat. II, IIIN Quick Coupler Hitch
- All Welded Steel Frame
- Optional Gauge Wheel Kits Available
- 27.5" Under Frame Clearance
- Dual Nested Spring Shank or Rigid Shank Assemblies
- 12" Shank Spacing
- 12" Maximum Shank Working Depth
- 2" Reversible Points or 3" Reversible Twisted Points Available
- Powder Coat Paint
Specifications
| Model | CPPR2-7 |
| Approximate Weight | 533 lbs. (242 kg) |
| Working Width | 7 ft. 0 in. (2.1 m) |
| Transport Width | 8 ft. 6 in. (2.6 m) |
| Transport Height | 4 ft. 0 in. (1.2 m) |
| Overall Length | 5 ft. 3 in. (1.6 m) |
| Number of Shanks | 7 |
| Shank Mount | Rigid |
| Shank Size | 1 in. x 2 in. x 26 in. (25.4 x 50.8 x 660 mm) |
| Shank Spacing | 12 in. (300 mm) |
| Shank Working Depth | Maximum 12 in. (300 mm) |
| Spring Pressure / Trip Resistance | 550 lbs. to 825 lbs. (248 kg to 371 kg) |
| Shank Trip Height | N/A |
| Chisel Points Available | 2 in. (50.8 mm) Reversible Point or 3 in. (76.2 mm) Reversible Twisted Point |
| Under Frame Clearance | 27.5 in. (688 mm) |
| Frame Structure | 4 in. x 4 in. x .187 in. (100 x 100 x 4.67 mm) |
| Three-Point Hitch | Cat. II Free Link; Cat. II, IIIN Quick Coupler Hitch |
| SMV Emblem | Standard |
| Powder Coat Paint, Red | Standard |
| Optional Equipment | Safety Warning Lights Manual Adjust Gauge Wheel Kit Shank and Clamp Assemblies |
| Horsepower Requirements | 10 to 15 HP (8 to 11 kW) per Shank |
| Recommended Operating Speed | 4 to 6 MPH (6.43 to 9.65 km/h) |
