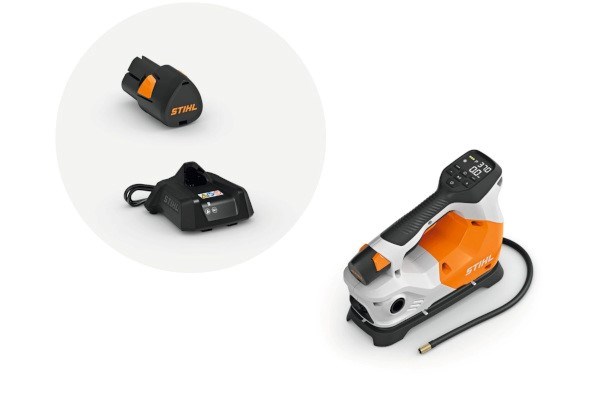

Stihl KOA 20 Set

New Equipment / Stihl / Supplying / Air Inflators / KOA 20 Set

IPX4 Rating
This tool is IPX4-rated weather-resistant construction and has been designed and tested for splash water protection.
Rubber Feet
The rubber feet keep the machine stationary and reduce vibration to help prevent damage to flooring.
HMI Screen
The HMI display provides at-a-glance diagnostics and allows users to set their desired pressure or volume while automatically compensating for altitude.
LED Flashlight
The KOA 20 is built with an integrated LED flashlight to help users see better in low light situations while operating the air inflator.
3-in-1 Versatility
The KOA 20 is capable of inflating to pressure or volume requirements, as well as deflating, giving users versatility for a variety of applications.
Portable
Powered by an AS battery and built with a lightweight, compact design.

Rated voltage	11 V
Max. voltage	12 V
Cordless power system	AS
Recommended battery	AS 2
max. pressure (high pressure pump)	10.3 bar
max. pressure (high pressure pump)	150 psi
max air flow high (volume pump)	360 l/min
Max. battery working time AS 2 with high-pressure function	23 min ¹⁾
Max. battery working time AS 2 with volume function	23 min ¹⁾
Hose length	605 mm
Device length	282 mm
Device width	105 mm
Device height	223 mm

¹⁾The indicated working times per battery charge are indicative and may vary depending on the application and operating mode
