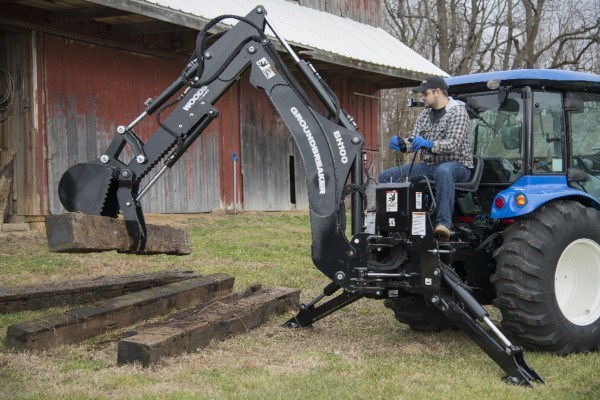

Woods BH85
BH85
Groundbreaker® Backhoes
Overview:
EXTRA HEAVY-DUTY
Greater Visibility
Curved-boom design allows you to dig with greater visibility and control.
Fits Many Tractors
Subframe kits and three-point mounts available for many tractor models.
Features
- Optional Thumbs to easily pick up and move large debris.
- High-back Seat for more comfortable and easy operation.
- Open Platform allows you to get on and off the unity easily.
- Ergonomically Positioned Levers for comfort and easy operation.
Specifications
| Product Tier | Extra Heavy-Duty |
| Tractor PTO HP | 30-100 |
| Digging Depth - 2' Flat Bottom (in | ft) | 102, 8.5 |
| Digging Depth - 8 ft Flat Bottom (in) | 82 |
| Reach from Swing Pivot (in) | 141 |
| Loading Height (in) | 83 |
| Loading Reach (in) | 61 |
| Transport Height (in) | 94 |
| Transport Length (in) | 55 |
| Approx. Weight - Frame Only (lbs) | 1,275 |
| Swing Arc (degrees) | 180 |
| Stabilizer Spread - Up (transporting) (in) | 71 |
| Stabilizer Spread - Down (operating) (in) | 102 |
| Relief Pressure (psi) | 2,465 |
| Bucket Digging Force (lbs) | 4,600 |
| Dipperstick Digging Force (lbs) | 2,940 |
| Bucket Rotation (degrees) | 180 |
| Trenching Bucket Widths (in) | 12, 15, 18, 24 |
| Thumb | Optional mechanical or hydraulic |
| Flip-Over Stabilizer Pads | Standard |
| Stabilizer Street Pads | Optional |
| PTO Pump Kit | Optional |
| Ditching Bucket | 36 |
| Cemetery / Bellhole Bucket | 36 |
| 2-Cylinder Swing | Yes |
